SKY13547-490LF
ActiveSkyworks Solutions Inc.

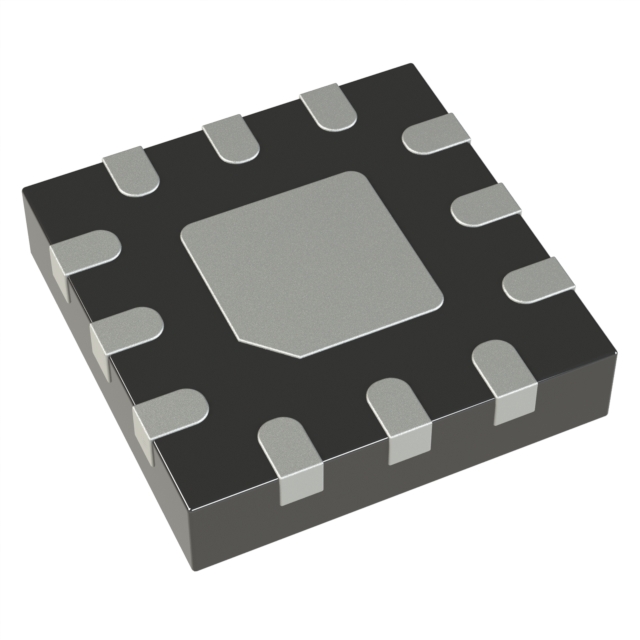

IC RF SWITCH SPDT 1.8GHZ 12QFN
Deep-Dive with AI
Search across all available documentation for this part.
SKY13547-490LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SPDT 1.8GHZ 12QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13547-490LF |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 1.8 GHz |
| Frequency Range [Min] | 5 MHz |
| Impedance | 75 Ohms |
| Insertion Loss | 0.3 dB |
| Mounting Type | Surface Mount |
| P1dB | 38 dBm |
| Package / Case | 12-UFQFN Exposed Pad |
| Supplier Device Package | 12-QFN (2x2) |
| Test Frequency | 1 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 4.8 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.38 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.17 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 1.38 | ||
| 10 | $ 1.23 | |||
| 25 | $ 1.17 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.63 | |||
| Tape & Reel (TR) | 3000 | $ 0.49 | ||
Description
General part information
SKY13547 Series
RF Switch IC SPDT 1.8 GHz 75Ohm 12-QFN (2x2)
Documents
Technical documentation and resources
No documents available
