ATS-HE25-C5-R0

Active

Advanced Thermal Solutions Inc.

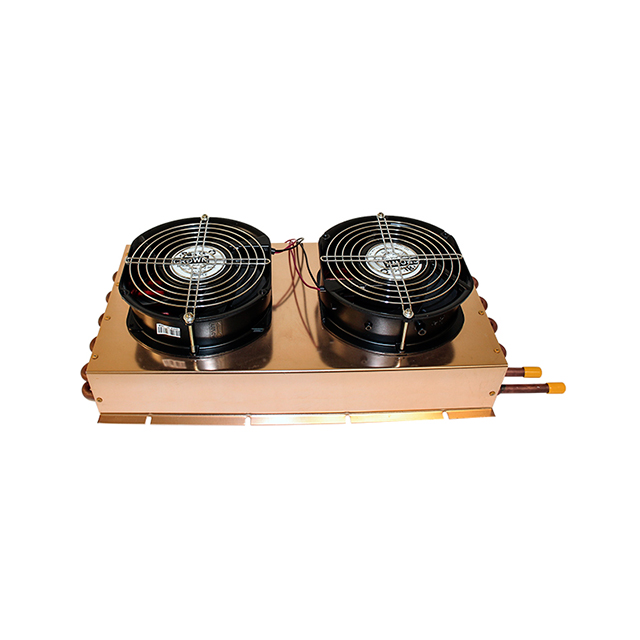

HEAT EXCHANGERS HEAT EXCHANGER W/2 X 24VDC PWM FAN, TUBE TO FIN, LIQUID-TO-AIR, 548X304X53MM

Search across all available documentation for this part.

Active

Advanced Thermal Solutions Inc.

HEAT EXCHANGERS HEAT EXCHANGER W/2 X 24VDC PWM FAN, TUBE TO FIN, LIQUID-TO-AIR, 548X304X53MM

Technical Specifications

Parameters and characteristics for this part

Heat Exchangers Heat Exchanger w/2 x 24VDC Fan, Tube to Fin, Liquid-to-Air, 266x147x45mm (LxWxH)

Part	Attachment Method	Voltage	Weight	Weight	Product Type	Power - Cooling	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [x]
Advanced Thermal Solutions Inc. ATS-HE22-C6-R0	Bolt On	48 V	2.9 kg	6.3 lbs	Active Heat Exchanger	64 W	2.64 "	9.04 "	229.5 mm	255.4 mm	67 mm	10.06 "
Advanced Thermal Solutions Inc. ATS-HE20-C1-R0			1.1 kg	2.4 lbs	Active Heat Exchanger	22 W
Advanced Thermal Solutions Inc. ATS-HE26-C6-R0	Bolt On	48 V	5.8 kg	12.8 lbs	Active Heat Exchanger	97 W	2.64 "	13.97 "	354.8 mm	473.5 mm	67 mm	18.64 "
Advanced Thermal Solutions Inc. ATS-HE25-C5-R0	Bolt On	24 V	7.6 kg	16.8 lbs	Active Heat Exchanger	177 W	2.64 "	12.28 in	312 mm	603 mm	67 mm	23.74 "
Advanced Thermal Solutions Inc. ATS-HE20-C4-R0	Bolt On	24 V	1.4 kg	3.1 lbs	Active Heat Exchanger	22 W	1.89 in	5.79 "	147 mm	209 mm	48 mm	8.23 in
Advanced Thermal Solutions Inc. ATS-HE22-C2-R0	Bolt On	12 V	2.9 kg	6.3 lbs	Active Heat Exchanger	64 W	2.64 "	9.04 "	229.5 mm	255.4 mm	67 mm	10.06 "
Advanced Thermal Solutions Inc. ATS-HE25-C1-R0			7.3 kg	16 lbs	Active Heat Exchanger	177 W
Advanced Thermal Solutions Inc. ATS-HE20-C7-R0	Bolt On	48 V	1.4 kg	3.1 lbs	Active Heat Exchanger	22 W	1.89 in	5.79 "	147 mm	209 mm	48 mm	8.23 in
Advanced Thermal Solutions Inc. ATS-HE21-C3-R0	Bolt On	12 V	2.4 kg	5.3 lbs	Active Heat Exchanger	46 W	1.89 in	5.79 "	147 mm	320.5 mm	48 mm	12.62 "
Advanced Thermal Solutions Inc. ATS-HE21-C6-R0	Bolt On	48 V	2.4 kg	5.3 lbs	Active Heat Exchanger	46 W	1.89 in	5.79 "	147 mm	320.5 mm	48 mm	12.62 "
