BAS70ADW-AU_R1_000A1

Active

Panjit International Inc.

SURFACE MOUNT SCHOTTKY DIODE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BAS70ADW-AU_R1_000A1

Active

Panjit International Inc.

SURFACE MOUNT SCHOTTKY DIODE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BAS70ADW-AU_R1_000A1

Current - Average Rectified (Io) (per Diode)	200 mA
Current - Reverse Leakage @ Vr	1 µA
Diode Configuration	2 Pair Common Anode
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C

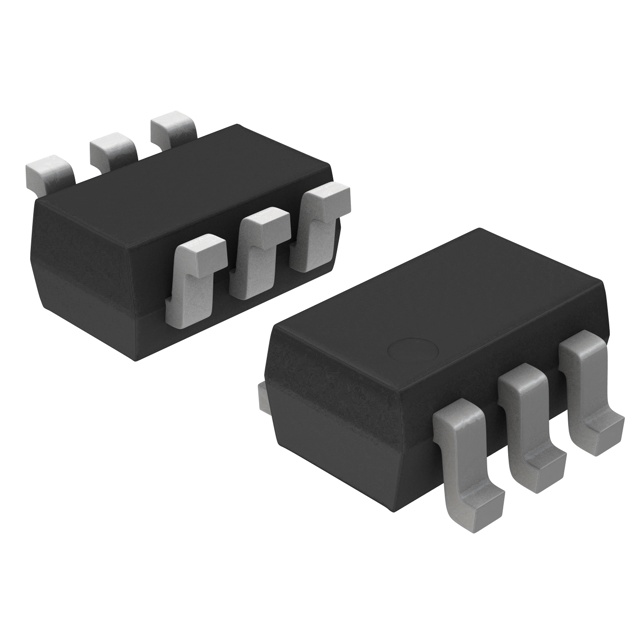

Package / Case	6-TSSOP, SC-88, SOT-363
Qualification	AEC-Q101
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-363
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	70 V
Voltage - Forward (Vf) (Max) @ If	900 mV

BAS70 Series

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Grade	Technology	Supplier Device Package	Speed	Speed	Diode Configuration	Mounting Type	Current - Average Rectified (Io) (per Diode)	Qualification	Current - Average Rectified (Io)	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Operating Temperature - Junction
Panjit International Inc. BAS70CW-AU_R1_000A1	900 mV	150 °C	-55 °C	1 µA	70 V	SC-70 SOT-323	Automotive	Schottky	SOT-323	Any Speed	200 mA	1 Pair Common Cathode	Surface Mount	200 mA	AEC-Q101
Panjit International Inc. BAS70-AU_R1_000A1	900 mV	150 °C	-55 °C	1 µA	70 V	SC-59 SOT-23-3 TO-236-3	Automotive	Schottky	SOT-23	Any Speed	200 mA		Surface Mount		AEC-Q101	200 mA	2 pF
Panjit International Inc. BAS70ADW-AU_R1_000A1	900 mV	125 °C	-55 °C	1 µA	70 V	6-TSSOP SC-88 SOT-363	Automotive	Schottky	SOT-363	Any Speed	200 mA	2 Pair Common Anode	Surface Mount	200 mA	AEC-Q101
Panjit International Inc. BAS70TW_S2_00001	1 V	125 °C	-55 °C	100 nA	70 V	6-TSSOP SC-88 SOT-363		Schottky	SOT-363	Any Speed	200 mA	3 Independent	Surface Mount	200 mA				5 ns
Panjit International Inc. BAS70AW_R1_00001	1 V			10 µA	70 V	SC-70 SOT-323		Schottky	SOT-323	Any Speed	200 mA	1 Pair Common Anode	Surface Mount	200 mA					150 ¯C
Panjit International Inc. BAS70S_R1_00001	1 V	150 °C	-55 °C	1 µA	70 V	SC-59 SOT-23-3 TO-236-3		Schottky	SOT-23	Any Speed	200 mA	1 Pair Series Connection	Surface Mount	200 mA
Panjit International Inc. BAS70A_R1_00001	1 V	150 °C	-55 °C	1 µA	70 V	SC-59 SOT-23-3 TO-236-3		Schottky	SOT-23	Any Speed	200 mA	1 Pair Common Anode	Surface Mount	200 mA
Panjit International Inc. BAS70SW-AU_R1_000A1	900 mV	150 °C	-55 °C	1 µA	70 V	SC-70 SOT-323	Automotive	Schottky	SOT-323	Any Speed	200 mA	1 Pair Series Connection	Surface Mount	200 mA	AEC-Q101
Panjit International Inc. BAS70SDW_R1_00001	1 V	125 °C	-55 °C	100 nA	70 V	6-TSSOP SC-88 SOT-363		Schottky	SOT-363	Any Speed	200 mA	2 Pair Series Connection	Surface Mount	200 mA				5 ns
Panjit International Inc. BAS70C-AU_R1_000A1	900 mV	150 °C	-55 °C	1 µA	70 V	SC-59 SOT-23-3 TO-236-3	Automotive	Schottky	SOT-23	Any Speed	200 mA	1 Pair Common Cathode	Surface Mount	200 mA	AEC-Q101

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.36
	Digi-Reel®	1	$ 0.36
	Tape & Reel (TR)	4002000	$ 0.05

Description

General part information

BAS70 Series

Diode Array 2 Pair Common Anode 70 V 200mA Surface Mount 6-TSSOP, SC-88, SOT-363
