DF14A-3P-1.25H(52)

Active

Hirose Electric USA, Inc.

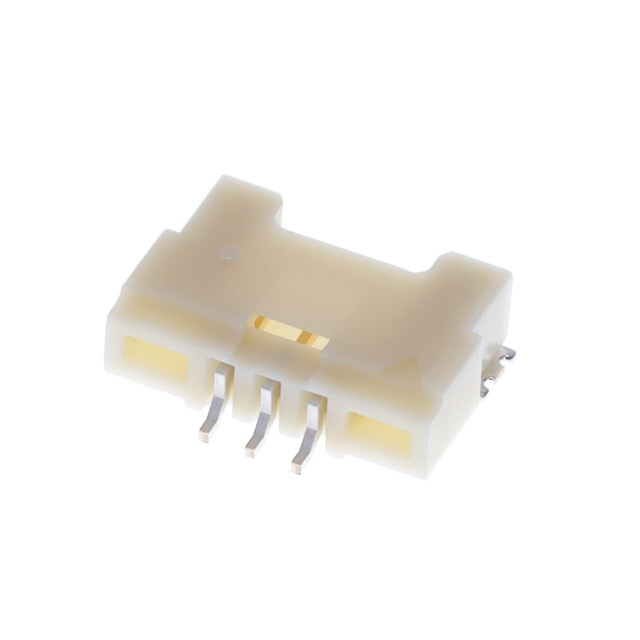

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.049 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF14 Series Catalog Datasheet

DF14A-3P-1.25H(52)

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.049 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR,

Deep-Dive with AI

DocumentsDF14 Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF14A-3P-1.25H(52)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3.94 µin
Contact Finish Thickness - Mating	0.1 µm
Contact Finish Thickness - Post	3.94 Áin
Contact Finish Thickness - Post	0.1 Ám
Contact Length - Mating	2.2 mm
Contact Length - Mating [x]	0.087 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Beige
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VAC

DF14A Series

Part	Number of Rows	Contact Shape	Fastening Type	Features	Contact Length - Mating	Contact Length - Mating [x]	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Termination	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Material Flammability Rating	Contact Type	Connector Type	Style	Shrouding	Voltage Rating	Contact Length - Mating [x]
Hirose Electric USA, Inc. DF14A-9P-1.25H(52)	1	Square	Push-Pull	Solder Retention	2.2 mm	0.087 in	Nylon Polyamide (PA)	0.098 in	2.5 mm	Gold	Solder	9	All	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Gold	3.94 µin	0.1 µm	Brass	3.94 Áin	0.1 Ám	Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VAC
Hirose Electric USA, Inc. DF14A-5P-1.25H(22)	1	Square	Push-Pull	Solder Retention	2.2 mm	0.087 in	Nylon Polyamide (PA)	0.098 in	2.5 mm	Tin	Solder		All	1.25 mm	0.049 in	Beige	-35 °C	85 °C		39.4 µin	1 µm	Brass	39.4 çin	1 çm	Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VAC
Hirose Electric USA, Inc. DF14A-4P-1.25H(22)	1	Square	Push-Pull	Solder Retention	2.2 mm	0.087 in	Nylon Polyamide (PA)	0.098 in	2.5 mm	Tin	Solder	4	All	1.25 mm	0.049 in	Beige	-35 °C	85 °C		39.4 µin	1 µm	Brass	39.4 çin	1 çm	Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VAC
Hirose Electric USA, Inc. DF14A-5P-1.25H(52)	1	Square	Push-Pull	Solder Retention	2.2 mm	0.087 in	Nylon Polyamide (PA)	0.098 in	2.5 mm	Gold	Solder		All	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Gold	3.94 µin	0.1 µm	Brass	3.94 Áin	0.1 Ám	Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VAC
Hirose Electric USA, Inc. DF14A-20P-1.25H(97)	1	Square	Push-Pull	Board Guide Solder Retention			Polyester	0.098 in	2.5 mm	Tin	Solder	20	All	1.25 mm	0.049 in	Beige	-30 ░C	85 °C	Gold	3.94 µin	0.1 µm	Phosphor Bronze	39.4 çin	1 çm	Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VAC
Hirose Electric USA, Inc. DF14A-3P-1.25H(56)	1	Square	Push-Pull	Solder Retention		0.086 in	Nylon Polyamide (PA)	0.098 in	2.5 mm	Tin-Copper	Solder		All	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Gold	3.9 µin	0.099 µm	Brass	39.4 çin	1 çm	Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VDC	2.2 mm
Hirose Electric USA, Inc. DF14A-3P-1.25H(52)	1	Square	Push-Pull	Solder Retention	2.2 mm	0.087 in	Nylon Polyamide (PA)	0.098 in	2.5 mm	Gold	Solder		All	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Gold	3.94 µin	0.1 µm	Brass	3.94 Áin	0.1 Ám	Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VAC
Hirose Electric USA, Inc. DF14A-5P-1.25H(26)	1	Square	Push-Pull	Solder Retention		0.086 in	Nylon Polyamide (PA)	0.098 in	2.5 mm		Solder		All	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Tin-Copper	39.4 µin	1 µm	Brass			Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VDC	2.2 mm
Hirose Electric USA, Inc. DF14A-4P-1.25H(55)	1	Square	Push-Pull	Solder Retention		0.086 in	Nylon Polyamide (PA)	0.098 in	2.5 mm	Tin-Copper	Solder	4	All	1.25 mm	0.049 in	Beige	-25 °C	85 °C	Gold	3.9 µin	0.099 µm	Brass	39.4 çin	1 çm	Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VDC	2.2 mm
Hirose Electric USA, Inc. DF14A-4P-1.25H(35)	1	Square	Push-Pull	Solder Retention	2.2 mm	0.087 in	Nylon Polyamide (PA)	0.098 in	2.5 mm	Tin	Solder	4	All	1.25 mm	0.049 in	Beige	-35 °C	85 °C		39.4 µin	1 µm	Brass	39.4 çin	1 çm	Surface Mount Right Angle	UL94 V-0	Male Pin	Header	Board to Cable/Wire	Shrouded - 4 Wall	150 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.14
		10	$ 0.96
		100	$ 0.87
		500	$ 0.71
	Digi-Reel®	1	$ 1.14
		10	$ 0.96
		100	$ 0.87
		500	$ 0.71
	Tape & Reel (TR)	1000	$ 0.62
		2000	$ 0.58
		3000	$ 0.56
		5000	$ 0.54
		10000	$ 0.52

Description

General part information

DF14A Series

Connector Header Surface Mount, Right Angle 3 position 0.049" (1.25mm)

Documents

Technical documentation and resources

DF14 Series Catalog

Datasheet
