104720C0

Obsolete

LAPP

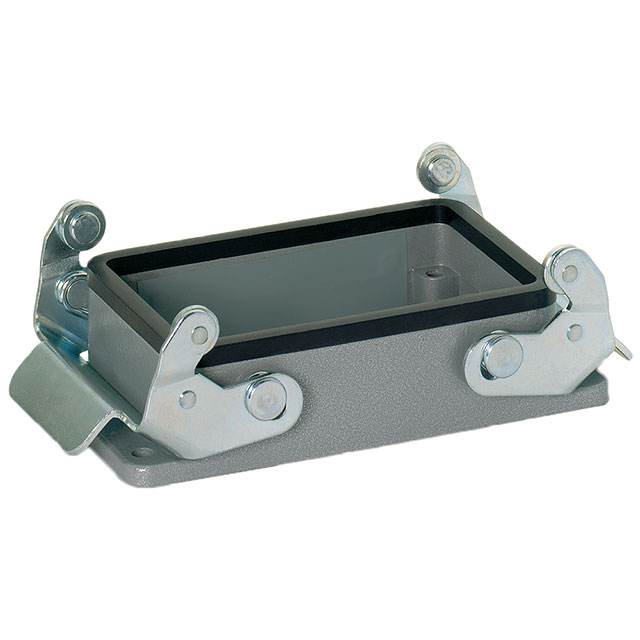

CONN BASE HA32 PNL MNT DL

Search across all available documentation for this part.

Obsolete

LAPP

CONN BASE HA32 PNL MNT DL

Technical Specifications

Parameters and characteristics for this part

Specification	104720C0

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HA32
Size / Dimension [x]	4.016 "
Size / Dimension [x]	102 mm
Size / Dimension [y]	56 mm
Size / Dimension [y]	2.205 in
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Style	Bottom Entry

Part	Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Connector Type	Housing Color	Ingress Protection	Housing Material	Style	Lock Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
LAPP 104720C0	HA32	125 °C	-40 °C	Powder Coated	Base - Panel Mount	Gray	IP65 - Dust Tight Water Resistant	Aluminum Alloy	Bottom Entry	Locking Clip (1) on Base Bottom	56 mm	4.016 "	102 mm	1 "	2.205 in	25.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Base - Panel Mount Connector Bottom Entry HA32 IP65 - Dust Tight, Water Resistant
