H679VPC,GY

Active

Serpac

BOX ABS GRAY 4.94"L X 2.75"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.94"L X 2.75"W

Technical Specifications

Parameters and characteristics for this part

Specification	H679VPC,GY

Area (L x W)	13.6 in˛
Area (L x W)	88 cm²
Color	Gray
Container Type	Box
Features	Pocket Clip, PCB Supports, 9V, Battery Compartment
Height [z]	1.28 in
Height [z]	32.51 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	125.48 mm, 4.94 "
Size / Dimension [y]	69.85 mm
Thickness	2.03 mm
Thickness	0.08 "
Weight	62.14 g
Weight	0.137 lb

Part	Container Type	Thickness	Thickness	Material	Height [z]	Height [z]	Features	Color	Ratings	Weight	Weight	Material Flammability Rating	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]
Serpac H679VPC,BK	Box	2.03 mm	0.08 "	Plastic ABS	1.28 in	32.51 mm	9V Battery Compartment PCB Supports Pocket Clip	Black	IP40	62.14 g	0.137 lb	UL94 HB	88 cm²	13.6 in˛	69.85 mm	4.94 " 125.48 mm
Serpac H679VPC,GY	Box	2.03 mm	0.08 "	Plastic ABS	1.28 in	32.51 mm	9V Battery Compartment PCB Supports Pocket Clip	Gray	IP40	62.14 g	0.137 lb	UL94 HB	88 cm²	13.6 in˛	69.85 mm	4.94 " 125.48 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.03

General part information

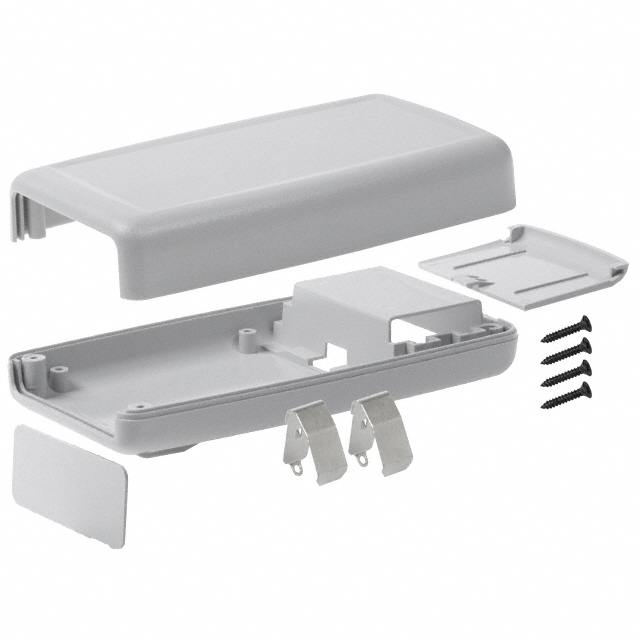

Box Plastic, ABS Gray Hand Held, Split Sides and End Panel(s) 4.940" L x 2.750" W (125.48mm x 69.85mm) X 1.280" (32.51mm)
