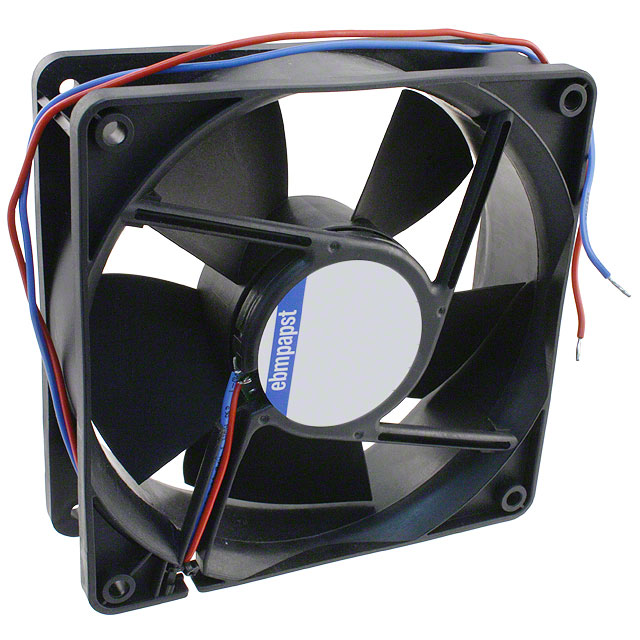

4214NGML

Obsolete

ebm-papst Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	4214NGML

Air Flow	2.09 m³/min
Air Flow	74.7 CFM
Bearing Type	Sintec
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	35 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	2.3 W
RPM	2150 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	12 VDC
Weight	229.97 g
Weight	0.507 lb
Width [y]	38 mm

Part	Width [y]	RPM	Lifetime @ Temp.	Fan Type	Material - Blade	Size / Dimension [y]	Size / Dimension [x]	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Weight	Weight	Voltage - Rated	Termination	Power (Watts)	Material - Frame
ebm-papst Inc. 4214NGML	38 mm	2150 RPM	70000 Hrs	Tubeaxial	Fiberglass Reinforced Nylon Polyamide (PA)	119 mm	119 mm	35 dB	-20 °C	70 °C	-20 C	70 °C	Sintec	12 VDC	28 VDC	2.09 m³/min	74.7 CFM	229.97 g	0.507 lb	24 VDC	2 Wire Leads	2.3 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Sintec 74.7 CFM (2.09m³/min) 2 Wire Leads
