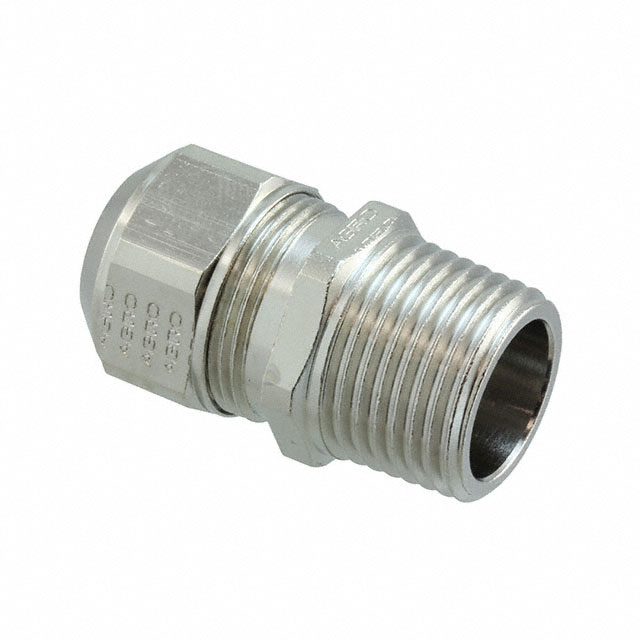

A1000.3/8NPT.105

Active

American Electrical Inc.

CABLE GLAND 8-10.5MM 3/8" NPT

Search across all available documentation for this part.

Active

American Electrical Inc.

CABLE GLAND 8-10.5MM 3/8" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	A1000.3/8NPT.105

Color	Silver
Includes	Seal
Ingress Protection	IP68, IP69K
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	0.413 in
Outside Cable Diameter (Max) [Max]	10.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.315 in
Thread Length	0.472 in
Thread Length	12 mm
Thread Size	3/8" NPT
Type	Cable Gland

Part	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Length	Thread Length	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Color	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
American Electrical Inc. A1000.3/8NPT.105	Seal	0.413 in	10.5 mm	100 °C	-40 °C	IP68 IP69K	0.472 in	12 mm	Cable Gland	8 mm	0.315 in	3/8" NPT	Silver	Brass Nickel Plated
American Electrical Inc. A1000.3/8NPT.060	Seal			100 °C	-40 °C	IP68 IP69K	0.472 in	12 mm	Cable Gland	4.5 mm	0.177 in	3/8" NPT	Silver	Brass Nickel Plated	0.236 in	6 mm
American Electrical Inc. A1000.3/8NPT.080	Seal			100 °C	-40 °C	IP68 IP69K	0.472 in	12 mm	Cable Gland	6 mm	0.236 in	3/8" NPT	Silver	Brass Nickel Plated	0.315 in	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 10.04

General part information

Cable Gland Brass, Nickel Plated 3/8" NPT Silver
