VM3CQF1802L00

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 16A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 16A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Switch Function	Circuit	Differential Travel	Differential Travel	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position	Actuator Type	Overtravel	Overtravel	Pretravel	Pretravel	Current Rating (Amps)	Mounting Type	Mechanical Life	Release Force	Termination Style

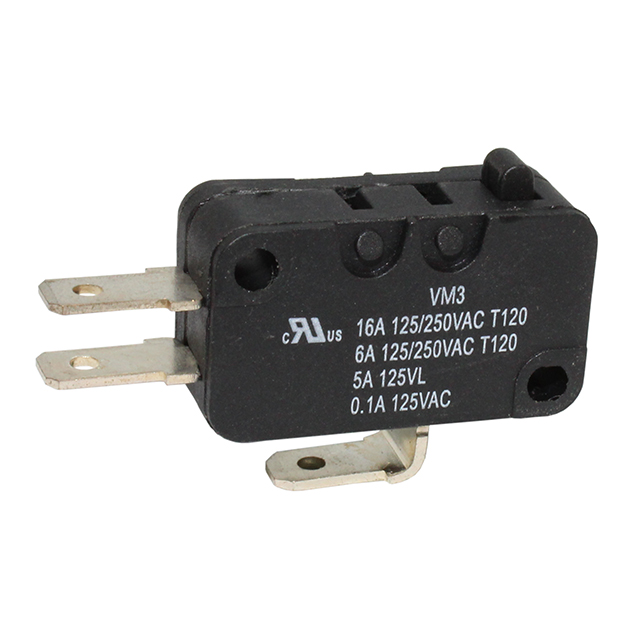

CIT Relay and Switch VM3CQF1802L00	180 gf	On-Mom	SPDT	0.016 "	0.4 mm	125 V	-40 °C	120 °C	0.562 in	14.3 mm	Round (Pin Plunger)	0.045 in	1.1 mm	1.4 mm	0.055 in	16 A	Chassis Mount	10000000 Cycles	90 gf	Quick Connect - 0.187" (4.7mm)
CIT Relay and Switch VM3CQF0802L03	35 gf	On-Mom	SPDT	0.025 in	0.6 mm	125 V	-40 °C	120 °C	0.551 "	14 mm	Lever Straight	0.09 in	2.3 mm	3.3 mm	0.131 in	16 A	Chassis Mount	10000000 Cycles	18 gf	Quick Connect - 0.187" (4.7mm)
CIT Relay and Switch VM3CQF1801L02	80 gf	On-Mom	SPDT	0.027 "	0.7 mm	125 V	-40 °C	120 °C	0.697 in	17.7 mm	Lever Simulated Roller	0.09 in	2.3 mm			16 A	Chassis Mount	10000000 Cycles		Quick Connect - 0.250" (6.3mm)
CIT Relay and Switch VM3CQF0802L07	18 gf	On-Mom	SPDT	0.075 in	1.9 mm	125 V	-40 °C	120 °C	0.445 in	11.3 mm	Lever Straight			7.7 mm	0.303 in	16 A	Chassis Mount	10000000 Cycles	10 gf	Quick Connect - 0.187" (4.7mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
