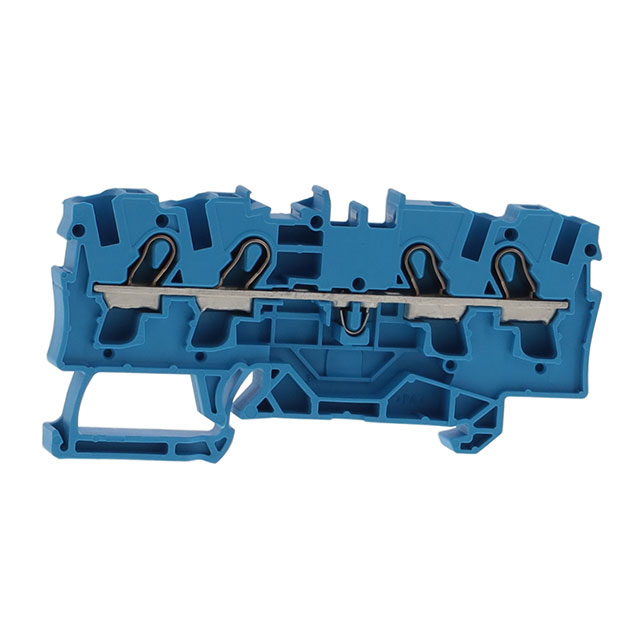

2004-1404

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 20 AWG, 10 AWG, 6 MM², CLAMP, 32 A

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 20 AWG, 10 AWG, 6 MM², CLAMP, 32 A

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - IEC	Type	Terminal - Width [y]	Current - IEC	Material - Insulation	Termination Style	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Color	Number of Positions	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Stripping Length [Max]	Stripping Length [Min]	For Use With/Related Products
WAGO Corporation 2004-1404	800 V	Feed Through	6.2 mm	41 A	Polyamide (PA66) Nylon 6/6	Push In Spring	600 V	14 AWG	10 AWG	30 A	Blue	4	1	6 mm²	1.5 mm²	13 mm	11 mm
WAGO Corporation 2004-1491		End Plate									Gray							TOPJOB®S Series
WAGO Corporation 2004-1407		Ground Earth	6.2 mm		Polyamide (PA66) Nylon 6/6	Push In Spring		14 AWG	10 AWG		Green Yellow	4	1	6 mm²	1.5 mm²	13 mm	11 mm
WAGO Corporation 2004-1492		End Plate																TOPJOB®S Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 4 Position Feed Through Blue 10-14 AWG
