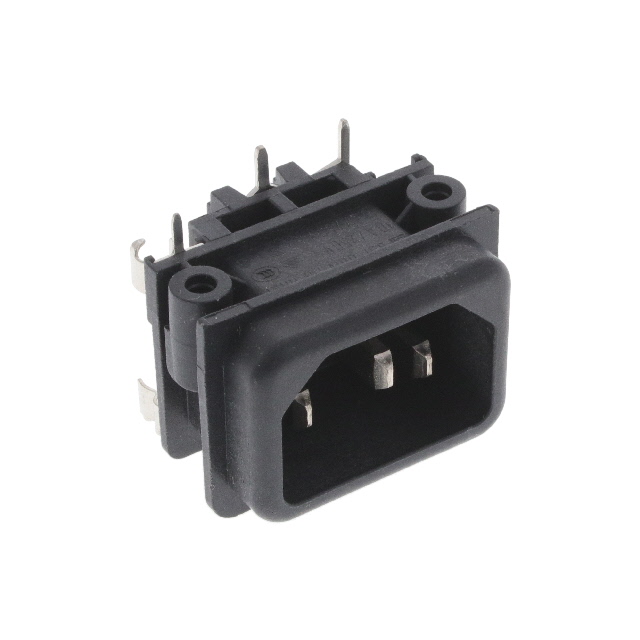

GSF1.1002.01

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	GSF1.1002.01

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Mounting Hardware
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.3 mm
Panel Thickness	0.236 in
Panel Thickness	6 mm
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Features	Filter Type	Fuse Holder, Drawer	Accomodates a Fuse	Material Flammability Rating	Mounting Type	Connector Type	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Connector Style	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Termination
SCHURTER Inc. GSF1.1002.01	Mounting Hardware	Unfiltered - Commercial	Fuse Holder		UL94 V-0	Panel Mount Flange Through Hole Right Angle	Receptacle Male Blades - Module	0.236 in	6 mm	250 VAC	10 A	IEC 320-C14	IP40	30.3 mm	22.3 mm	CCC CSA ENEC UL	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
