0001.2711.22

Active

SCHURTER Inc.

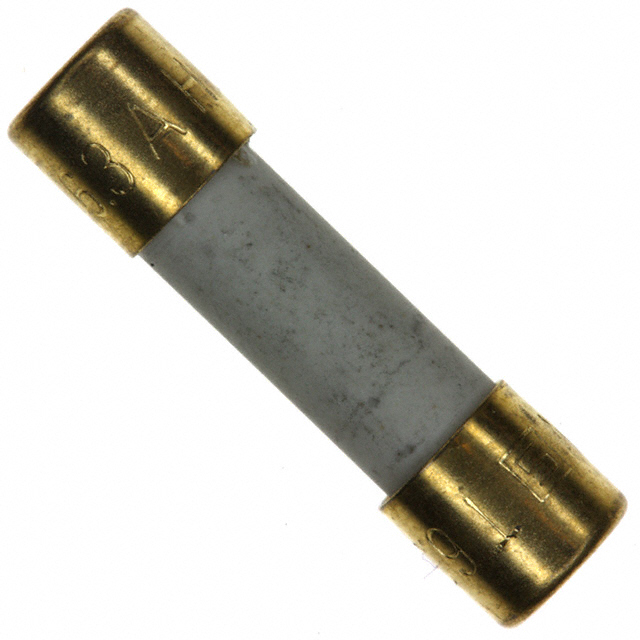

FUSE CERM 5A 250VAC 150VDC 5X20

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CERM 5A 250VAC 150VDC 5X20

Technical Specifications

Parameters and characteristics for this part

Specification	0001.2711.22

Approval Agency	VDE, CCC, cURus
Breaking Capacity @ Rated Voltage	1.5 kA
Current Rating (Amps)	5 A
Fuse Type	Cartridge, Ceramic
Melting I²t	97.5
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Slow Blow
Size / Dimension [diameter]	5.2 mm
Size / Dimension [diameter]	0.205 in
Size / Dimension [x]	0.787 in
Size / Dimension [x]	20 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	150 V

Part	Breaking Capacity @ Rated Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Voltage Rating - DC	Response Time	Mounting Type	Melting I²t	Fuse Type	Voltage Rating - AC	Approval Agency	Package / Case [y]	Package / Case [x]
SCHURTER Inc. 0001.2711.22	1.5 kA	-55 °C	125 °C	5 A	0.787 in	5.2 mm	20 mm	0.205 in	150 V	Slow Blow	Requires Holder	97.5	Cartridge Ceramic	250 V	CCC cURus VDE	20 mm	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.11
	Digi-Reel®	1	$ 2.11
	Tape & Reel (TR)	2000	$ 0.83

General part information

5 A 250 V AC 150 V DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
