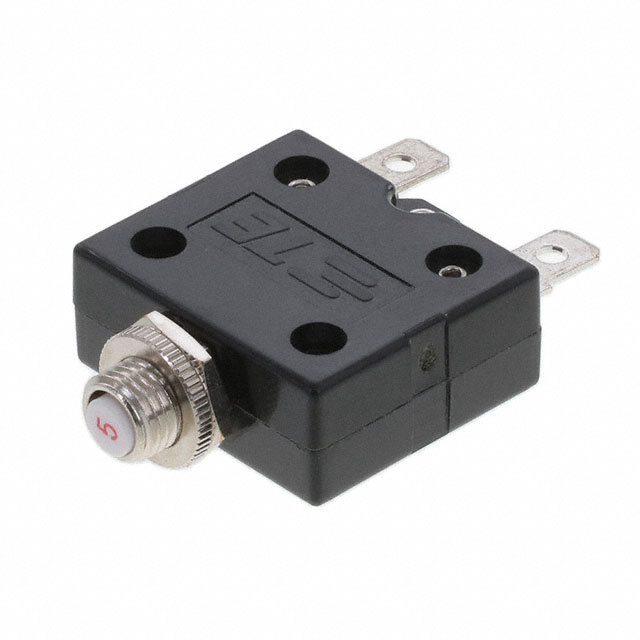

W54-XB2A4A10-5
ActiveTE Connectivity Potter & Brumfield Relays
CIR BRKR THRM 5A 250VAC
Deep-Dive with AI
Search across all available documentation for this part.
W54-XB2A4A10-5
ActiveTE Connectivity Potter & Brumfield Relays
CIR BRKR THRM 5A 250VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | W54-XB2A4A10-5 |
|---|---|
| Actuator Type | Push to Reset |
| Breaker Type | Thermal |
| Current Rating (Amps) | 5 A |
| Number of Poles | 1 |
| Voltage Rating - AC | 250 V |
W54 Series
| Part | Current Rating (Amps) | Number of Poles | Breaker Type | Voltage Rating - AC | Actuator Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|
TE Connectivity Potter & Brumfield Relays | 30 A | 1 | Thermal | 250 V | Push to Reset | |
TE Connectivity Potter & Brumfield Relays | 5 A | 1 | Thermal | 250 V | Push to Reset | |
TE Connectivity Potter & Brumfield Relays | 10 A | 1 | Thermal | 250 V | Push to Reset | |
TE Connectivity Potter & Brumfield Relays | 15 A | 1 | Thermal | 250 V | Push to Reset | |
TE Connectivity Potter & Brumfield Relays | 10 A | 1 | Thermal | 250 V | Push to Reset | |
TE Connectivity Potter & Brumfield Relays | 30 A | 1 | Thermal | 250 V | Push to Reset | |
TE Connectivity Potter & Brumfield Relays | 15 A | 1 | Thermal | 250 V | Push to Reset | |
TE Connectivity Potter & Brumfield Relays | 25 A | 1 | Thermal | 250 V | Push to Reset | |
TE Connectivity Potter & Brumfield Relays | 10 A | 1 | Thermal | 250 V | Push to Reset | 50 VDC |
TE Connectivity Potter & Brumfield Relays | 30 A | 1 | Thermal | 250 V | Push to Reset |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.38 | |
| 5 | $ 7.12 | |||
| 10 | $ 6.85 | |||
| 40 | $ 5.27 | |||
| 100 | $ 4.48 | |||
| 300 | $ 4.22 | |||
| 500 | $ 3.69 | |||
| 1000 | $ 3.56 | |||
Description
General part information
W54 Series
Circuit Breaker Thermal 5A 250 V AC DC Push to Reset Panel Mount
Documents
Technical documentation and resources
No documents available
