H4PXS-1436G

Active

Assmann WSW Components

DIP CABLE - HDP14S/AE14G/X

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDP14S/AE14G/X

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Length [x]	Length [x]	Number of Positions	Pitch - Cable	Pitch - Cable	Usage	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Cable Termination	Connector Type	Color	Length	Length	Length
Assmann WSW Components H4PXS-1436G	Tin	3 ft	914.4 mm	14	0.05 "	1.27 mm	Board In Socket (0.3")	2	0.1 in	2.54 mm	Unshielded	IDC	DIP to Cable
Assmann WSW Components H4PXS-1418M	Tin	1.5 ft	457.2 mm	14	0.05 "	1.27 mm	Board In Socket (0.3")	2	0.1 in	2.54 mm	Unshielded	IDC	DIP to Cable	Multiple Ribbon
Assmann WSW Components H4PXS-1406M	Tin			14	0.05 "	1.27 mm	Board In Socket (0.3")	2	0.1 in	2.54 mm	Unshielded	IDC	DIP to Cable	Multiple Ribbon	152.4 mm	6 "	0.5 '
Assmann WSW Components H4PXS-1406G	Tin			14	0.05 "	1.27 mm	Board In Socket (0.3")	2	0.1 in	2.54 mm	Unshielded	IDC	DIP to Cable		152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

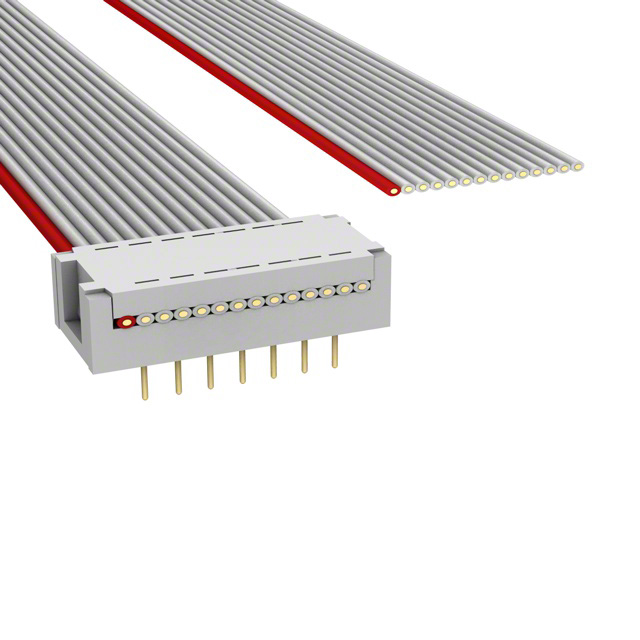

14 Position Cable Assembly Rectangular DIP to Cable 3.00' (914.40mm)

Technical documentation and resources
