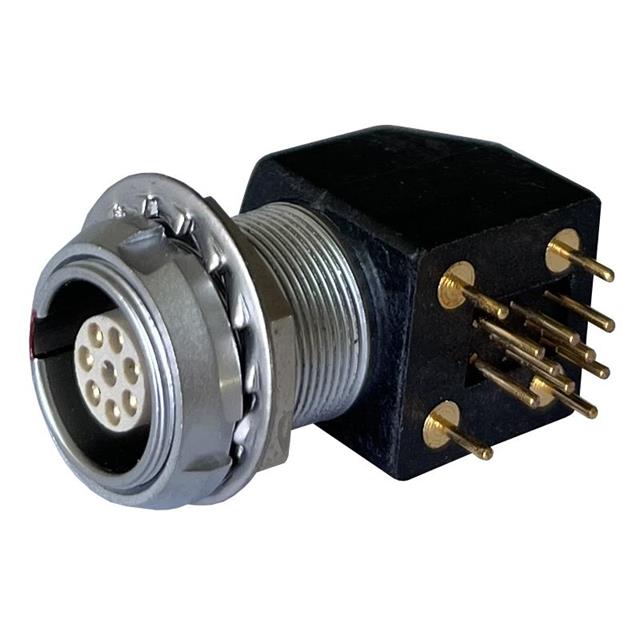

MMI-ES1G08PR-T

Active

Adam Tech

CONN RCPT FMALE 8POS GOLD SLDR

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT FMALE 8POS GOLD SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MMI-ES1G08PR-T

Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Material	Brass
Shielding	Unshielded
Termination	Solder
Voltage Rating	200 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Primary Material	Ingress Protection	Insert Material	Termination	Contact Finish - Mating	Orientation	Current Rating (Amps)	Connector Type	Voltage Rating	Shell Material	Number of Positions	Contact Material	Shielding	Mounting Feature	Mounting Type	Fastening Type
Adam Tech MMI-ES1G08PR-T	-55 °C	150 °C	UL94 V-0	Metal	IP50	Polyphenylene Sulfide (PPS)	Solder	Gold	G	2 A	Receptacle Female Sockets	200 V	Brass	8	Brass	Unshielded	Bulkhead - Front Side Nut	Panel Mount Right Angle Through Hole	Push-Pull
Adam Tech MMI-ES1G05PR	-55 °C	150 °C	UL94 V-0	Metal	IP50	Polyphenylene Sulfide (PPS)	Solder	Gold	G	4.5 A	Receptacle Female Sockets	250 VDC	Brass		Brass	Unshielded		Through Hole Right Angle	Push-Pull
Adam Tech MMI-ES1G04PR	-55 °C	150 °C	UL94 V-0	Metal	IP50	Polyphenylene Sulfide (PPS)	Solder	Gold	G	4.5 A	Receptacle Female Sockets	250 VDC	Brass	4	Brass	Unshielded		Through Hole Right Angle	Push-Pull
Adam Tech MMI-ES1G07PR	-55 °C	150 °C	UL94 V-0	Metal	IP50	Polyphenylene Sulfide (PPS)	Solder	Gold	G	2 A	Receptacle Female Sockets	200 V	Brass	7	Brass	Unshielded		Through Hole Right Angle	Push-Pull
Adam Tech MMI-ES1G08PR	-55 °C	150 °C	UL94 V-0	Metal	IP50	Polyphenylene Sulfide (PPS)	Solder	Gold	G	2 A	Receptacle Female Sockets	200 V	Brass	8	Brass	Unshielded		Through Hole Right Angle	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder
