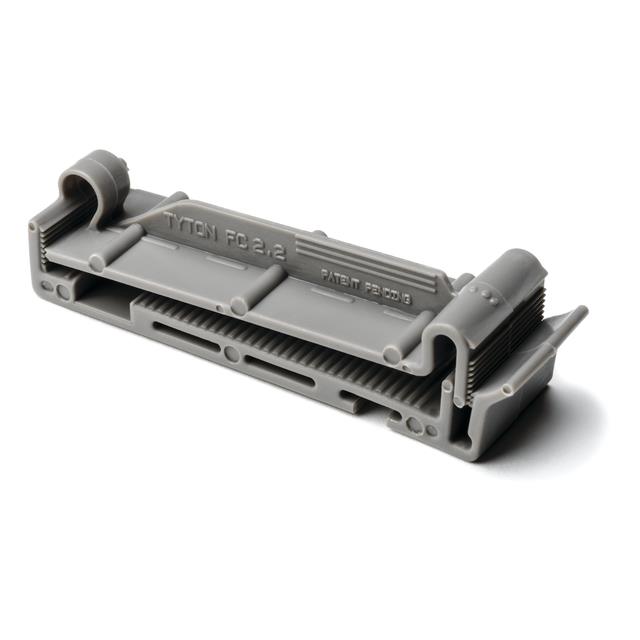

FC2.2H4

Active

HELLERMANNTYTON

CBL CLIP FLAT GRAY FASTENER

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP FLAT GRAY FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	FC2.2H4

Color	Gray
Height [Max] [z]	0.66 in
Height [Max] [z]	16.76 mm
Height [Min] [z]	12.95 mm
Height [Min] [z]	0.51 in
Length	2.61 in
Length	66.29 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener
Opening Size [custom]	55.88 mm
Opening Size [custom]	2.2 in
Screw Size	0.157 in
Screw Size	4 mm
Type	Flat, Clip
Type Attributes	Hinged, Top Lock
Width [y]	0.75 in
Width [y]	19.05 mm

Part	Screw Size	Screw Size	Type	Mounting Type	Color	Length	Length	Opening Size [custom]	Opening Size [custom]	Type Attributes	Material Flammability Rating	Material	Height [Max] [z]	Height [Min] [z]	Height [Max] [z]	Height [Min] [z]	Width [y]	Width [y]
HELLERMANNTYTON FC2.2H4	0.157 in	4 mm	Clip Flat	Fastener	Gray	2.61 in	66.29 mm	55.88 mm	2.2 in	Hinged Top Lock	UL94 V-2	Polyamide (PA66) Nylon 6/6	0.66 in	12.95 mm	16.76 mm	0.51 in	0.75 in	19.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.94
