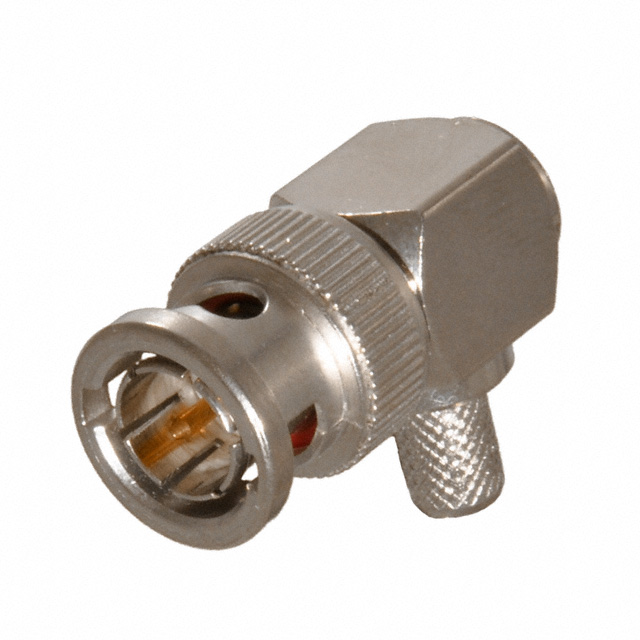

VB20-2031

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	VB20-2031

Body Finish	Nickel
Body Material	Zinc
Cable Group	RG-59
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Impedance	Dielectric Material	Connector Type	Fastening Type	Cable Group	Body Material	Housing Color	Connector Style	Frequency - Max [Max]	Includes	Contact Termination	Center Contact Plating	Voltage Rating	Mounting Type	Shield Termination	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Center Contact Material	Insertion Loss	Number of Ports
Cinch Connectivity Solutions Trompeter VB20-2031	50 Ohms	Polyoxymethylene (POM)	Male Pin Plug	Bayonet Lock	RG-59	Zinc	Silver	BNC	4 GHz	1 Connector 1 Ferrule	Solder	Gold	500 V	Free Hanging (In-Line) Right Angle	Crimp	500	85 °C	-55 °C	Nickel	Brass	0.2 dB	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 8.75

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
