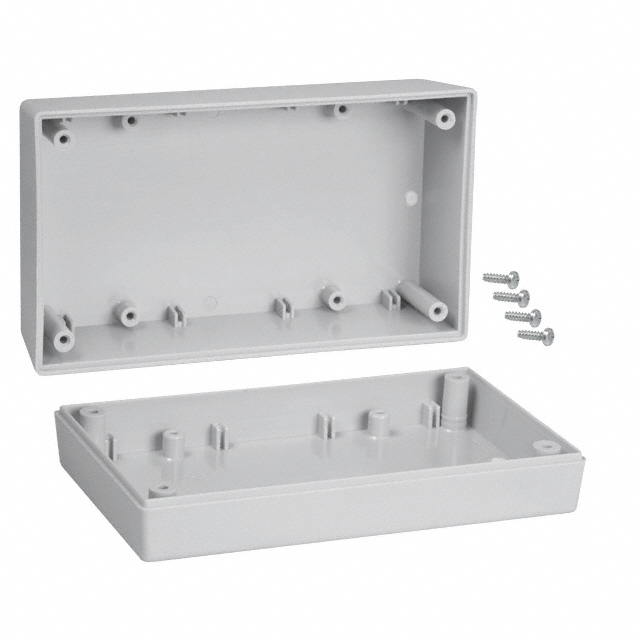

152,GY

Active

Serpac

BOX ABS GRAY 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 5.62"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	152,GY

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	119.29 g
Weight	0.263 lb

Part	Height [z]	Height [z]	Weight	Weight	Features	Area (L x W)	Area (L x W)	Design	Material	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material Flammability Rating	Thickness	Thickness	Ratings	Container Type
Serpac 152,GY	50.8 mm	2 in	119.29 g	0.263 lb	PCB Supports	18.3 in²	118 cm²	Hand Held Split Sides	Plastic ABS	Gray	3.25 "	142.75 mm	82.55 mm	5.62 in	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	Box
Serpac 152,BK	50.8 mm	2 in	119.29 g	0.263 lb	PCB Supports	18.3 in²	118 cm²	Hand Held Split Sides	Plastic ABS	Black	3.25 "	142.75 mm	82.55 mm	5.62 in	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.000" (50.80mm)
