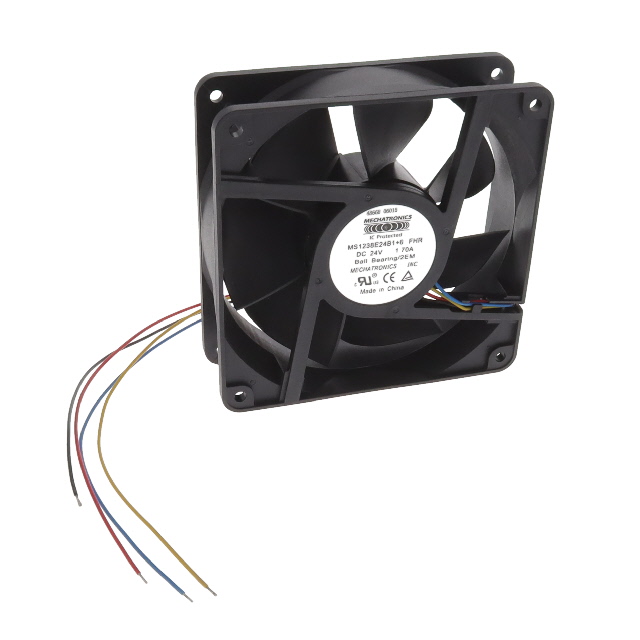

MS1238H24B1+6-FHR

Active

Mechatronics Bearing Group

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS1238H24B1+6-FHR

Active

Mechatronics Bearing Group

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS1238H24B1+6-FHR

Air Flow	203.3 CFM
Air Flow	5.69 m³/min
Bearing Type	Ball
Current Rating (Amps)	910 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Material - Blade	Plastic
Material - Frame	Plastic
Noise	56 dB
RPM	4000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.59 in H2O
Static Pressure	147 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Weight	0.667 lb
Weight	302.55 g
Width [y]	38 mm

MS1238 Series

Part	Current Rating (Amps)	Material - Frame	Width [y]	Termination	Weight	Weight	Fan Type	RPM	Bearing Type	Voltage - Rated [custom]	Features	Ingress Protection	Material - Blade	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Noise	Static Pressure	Static Pressure	Voltage - Rated
Mechatronics Bearing Group MS1238E48B1-FHR-2EM	0.85 A	Plastic	38 mm	3 Wire Leads	0.667 lb	302.55 g	Tubeaxial	5000 RPM	Ball	48 VDC	Auto Restart Speed Sensor (Tach)	IP68 - Dust Tight Waterproof	Plastic	7.59 m³/min	271.1 CFM	120 mm	120 mm	68 dB
Mechatronics Bearing Group MS1238M48B1+6-FHR-2EM	0.18 A	Plastic	38 mm	4 Wire Leads	0.667 lb	302.55 g	Tubeaxial	2500 RPM	Ball	48 VDC	Auto Restart PWM Control Speed Sensor (Tach)	IP68 - Dust Tight Waterproof	Plastic	3.5 m³/min	125 CFM	120 mm	120 mm	46 dB(A)	59.8 Pa	0.24 in H2O
Mechatronics Bearing Group MS1238H24B1+6-FHR	910 mA	Plastic	38 mm	4 Wire Leads	0.667 lb	302.55 g	Tubeaxial	4000 RPM	Ball		Auto Restart PWM Control Speed Sensor (Tach)		Plastic	5.69 m³/min	203.3 CFM	120 mm	120 mm	56 dB	147 Pa	0.59 in H2O	24 VDC
Mechatronics Bearing Group MS1238E48B-FHR-2EM	0.85 A	Plastic	38 mm	2 Wire Leads	0.667 lb	302.55 g	Tubeaxial	5000 RPM	Ball	48 VDC	Auto Restart	IP68 - Dust Tight Waterproof	Plastic	7.59 m³/min	271.1 CFM	120 mm	120 mm	68 dB
Mechatronics Bearing Group MS1238M48B-FHR	0.18 A	Plastic	38 mm	2 Wire Leads	0.667 lb	302.55 g	Tubeaxial	2500 RPM	Ball	48 VDC	Auto Restart		Plastic	3.5 m³/min	125 CFM	120 mm	120 mm	46 dB(A)	59.8 Pa	0.24 in H2O
Mechatronics Bearing Group MS1238M24B1+6-FHR-2EM	0.35 A	Plastic	38 mm	4 Wire Leads	0.667 lb	302.55 g	Tubeaxial	2500 RPM	Ball		Auto Restart PWM Control Speed Sensor (Tach)	IP68 - Dust Tight Waterproof	Plastic	3.5 m³/min	125 CFM	120 mm	120 mm	46 dB(A)	59.8 Pa	0.24 in H2O	24 VDC
Mechatronics Bearing Group MS1238M12B1+6-FHR-2EM	0.72 A	Plastic	38 mm	4 Wire Leads	0.667 lb	302.55 g	Tubeaxial	2500 RPM	Ball		Auto Restart PWM Control Speed Sensor (Tach)	IP68 - Dust Tight Waterproof	Plastic	3.5 m³/min	125 CFM	120 mm	120 mm	46 dB(A)	59.8 Pa	0.24 in H2O	12 VDC
Mechatronics Bearing Group MS1238H24B1+6-FHR-2EM	910 mA	Plastic	38 mm	4 Wire Leads	0.667 lb	302.55 g	Tubeaxial	4000 RPM	Ball		Auto Restart PWM Control Speed Sensor (Tach)	IP68 - Dust Tight Waterproof	Plastic	5.69 m³/min	203.3 CFM	120 mm	120 mm	56 dB	147 Pa	0.59 in H2O	24 VDC
Mechatronics Bearing Group MS1238M48B1+6-FHR	0.18 A	Plastic	38 mm	4 Wire Leads	0.667 lb	302.55 g	Tubeaxial	2500 RPM	Ball	48 VDC	Auto Restart PWM Control Speed Sensor (Tach)		Plastic	3.5 m³/min	125 CFM	120 mm	120 mm	46 dB(A)	59.8 Pa	0.24 in H2O
Mechatronics Bearing Group MS1238M24B1+6-FHR	0.35 A	Plastic	38 mm	4 Wire Leads	0.667 lb	302.55 g	Tubeaxial	2500 RPM	Ball		Auto Restart PWM Control Speed Sensor (Tach)		Plastic	3.5 m³/min	125 CFM	120 mm	120 mm	46 dB(A)	59.8 Pa	0.24 in H2O	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.12
		10	$ 25.68
		25	$ 24.71
		50	$ 23.08
		100	$ 21.29
		250	$ 20.97

Description

General part information

MS1238 Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 203.3 CFM (5.69m³/min) 4 Wire Leads
