3006-1551-619

Active

Radiall USA, Inc.

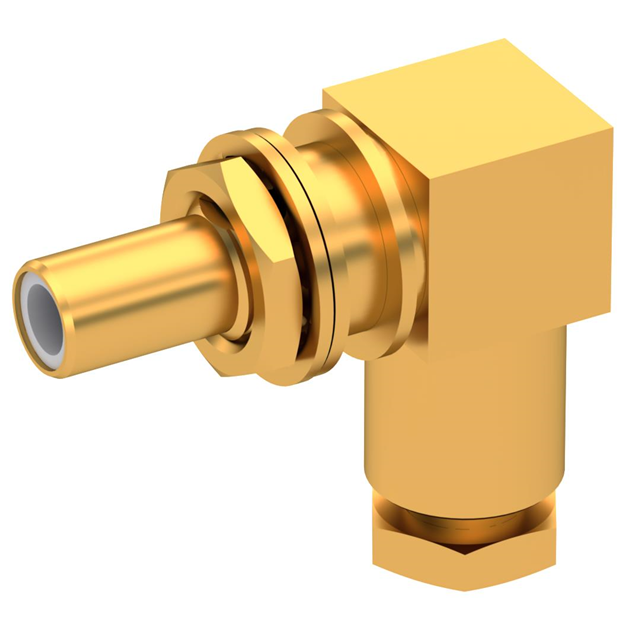

SLB / RIGHT ANGLE JACK MALE CLAM

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SLB / RIGHT ANGLE JACK MALE CLAM

Technical Specifications

Parameters and characteristics for this part

Specification	3006-1551-619

Body Finish	Gold
Body Material	Brass
Cable Group	RG-316 Double Braid
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SLB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

Part	Cable Group	Contact Termination	Mounting Type	Fastening Type	Housing Color	Insertion Loss	Shield Termination	Connector Type	Mounting Feature	Center Contact Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Voltage Rating	Number of Ports	Body Finish	Dielectric Material	Center Contact Plating	Body Material	Mating Cycles	Frequency - Max [Max]
Radiall USA, Inc. 3006-1551-619	RG-316 Double Braid	Solder	Panel Mount Right Angle	Snap-On	Gold	0.6 dB	Clamp	Jack Male Pin	Bulkhead - Front Side Nut	Brass	50 Ohms	-65 ░C	165 °C	SLB	335 V	1	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass	500	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 39.81

General part information

SLB Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Solder

Technical documentation and resources

No documents available
