910-40-1-12-2-B-0

Active

Wakefield-Vette

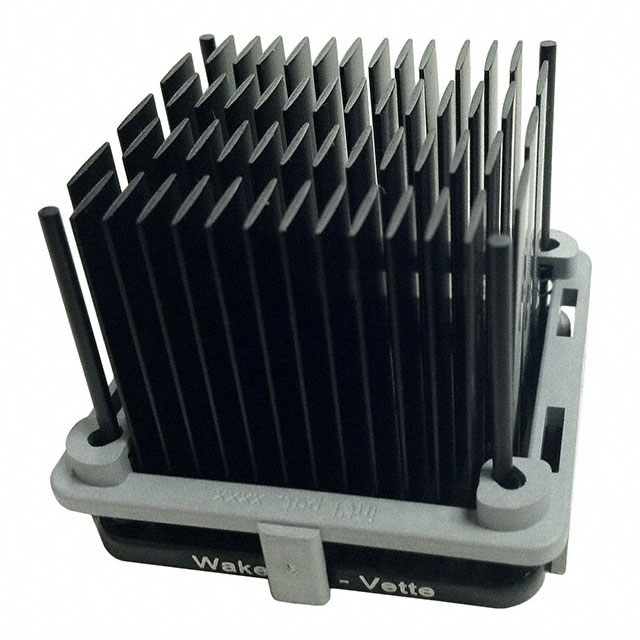

HEATSINK 40X40X12MM ELLIPTICAL

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK 40X40X12MM ELLIPTICAL

Technical Specifications

Parameters and characteristics for this part

Specification	910-40-1-12-2-B-0

Attachment Method	Push Pin
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	3.1 °C/W
Thermal Resistance @ Natural	10 °C/W
Type	Top Mount
Width [x]	1.575 in
Width [x]	40 mm

Part	Width [x]	Width [x]	Material Finish	Shape	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Thermal Resistance @ Natural	Type	Attachment Method	Material	Package Cooled	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]
Wakefield-Vette 910-40-1-23-2-B-0	1.575 in	40 mm	Black Anodized	Pin Fins Square	0.892 "	22.65 mm	2 °C/W 200 LFM	8.3 °C/W	Top Mount	Push Pin	Aluminum	BGA
Wakefield-Vette 910-40-2-21-2-B-0	1.575 in	40.01 mm	Black Anodized	Pin Fins Square			2.21 °C/W 200 LFM	7.77 °C/W	Top Mount	Push Pin	Aluminum	BGA	40.01 mm	1.575 in	20.6 mm	0.811 in
Wakefield-Vette 910-40-1-12-2-B-0	1.575 in	40 mm	Black Anodized	Pin Fins Square			3.1 °C/W	10 °C/W	Top Mount	Push Pin	Aluminum	BGA
Wakefield-Vette 910-40-1-33-2-B-0	1.575 in	40.01 mm	Black Anodized	Pin Fins Square	1.283 "	32.6 mm	1.61 °C/W	6.78 °C/W	Top Mount	Push Pin	Aluminum	BGA	40.01 mm	1.575 in
Wakefield-Vette 910-40-1-15-2-B-0	1.575 in	40.01 mm	Black Anodized	Pin Fins Square			2.77 °C/W 200 LFM	9.51 °C/W	Top Mount	Push Pin	Aluminum	BGA	40.01 mm	1.575 in	14.6 mm	0.575 in
Wakefield-Vette 910-40-1-28-2-B-0	1.575 in	40.01 mm	Black Anodized	Pin Fins Square			1.8 °C/W	7.55 °C/W	Top Mount	Push Pin	Aluminum	BGA	40.01 mm	1.575 in	27.6 mm	1.087 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	128	$ 9.00

General part information

Heat Sink BGA Aluminum Top Mount
