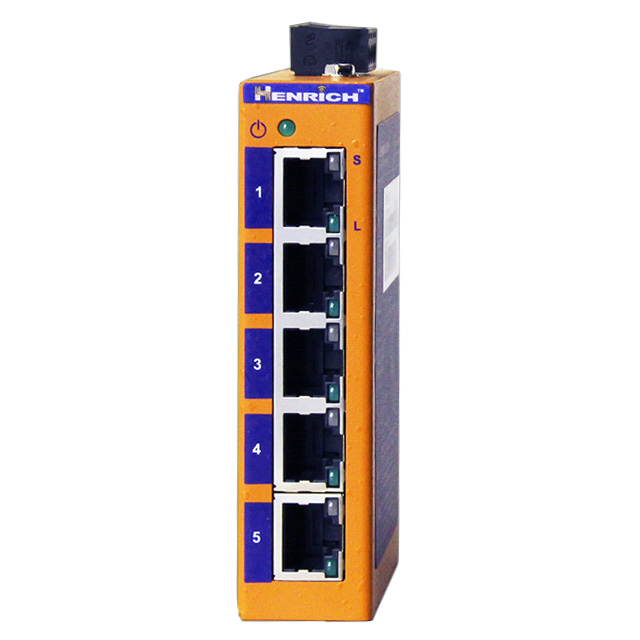

HES5B-LC-VL

Obsolete

Henrich Electronics Corporation

NETWORK SWITCH-UNMANAGED 5 PORT

Search across all available documentation for this part.

Obsolete

Henrich Electronics Corporation

NETWORK SWITCH-UNMANAGED 5 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	HES5B-LC-VL

Configuration	Fixed
Connector Type	LC, RJ45
Copper Ports	4
Copper Type	10/100
Fiber Ports	1
Fiber Type	100BASE-FX (Multimode, Singlemode)
Ingress Protection	IP30
Mounting Type	DIN Rail
Number of Ports	5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Type	Switch - Unmanaged
Voltage - Input [Max]	36 V, 24 VAC
Voltage - Input [Min]	12 V, 10 VAC

Part	Configuration	Number of Ports	Connector Type	Copper Type	Voltage - Input [Max]	Voltage - Input [Min]	Copper Ports	Operating Temperature [Min]	Operating Temperature [Max]	PoE Ports	Type	Mounting Type	Ingress Protection	Fiber Ports	Fiber Type
Henrich Electronics Corporation HES5A-4E60-VL	Fixed	5	RJ45	10/100	52 VDC	9 VDC	5	-40 °C	60 °C	4	Switch - Unmanaged	DIN Rail	IP40
Henrich Electronics Corporation HES5B-LC-VL	Fixed	5	LC RJ45	10/100	24 VAC 36 V	10 VAC 12 V	4	-10 °C	60 °C		Switch - Unmanaged	DIN Rail	IP30	1	100BASE-FX (Multimode Singlemode)
Henrich Electronics Corporation HES5M-SFC53-VLW	Fixed SFP	5	FC RJ45	10/100	24 VAC 36 V	10 VAC 12 V	4	-40 °C	75 ░C			DIN Rail	IP30	1	100BASE-FX (Singlemode)
Henrich Electronics Corporation HES5G-VLW	Fixed	5	RJ45	10 100 1000	24 VAC 36 V	10 VAC 12 V	5	-40 °C	75 ░C		Switch - Unmanaged	DIN Rail	IP30

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 157.16

General part information

Network Switch - Unmanaged 5 Ports IP30
