DC08-11SRWA
ObsoleteKingbright

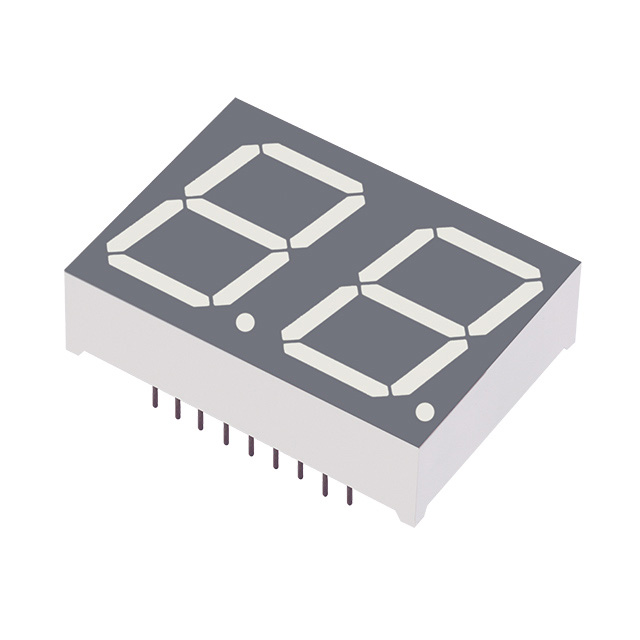

7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 20.32MM, ROHS COMPLIANT PACKAGE-18
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DC08-11SRWA
ObsoleteKingbright
7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 20.32MM, ROHS COMPLIANT PACKAGE-18
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC08-11SRWA |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 20.32 mm |
| Digit/Alpha Size | 0.8 in |
| Display Type | 7-Segment |
| Millicandela Rating | 32 mcd |
| Number of Characters | 2 |
| Package / Case | 22 mm |
| Package / Case | 18-DIP |
| Package / Case | 0.866 in |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension | 10 mm, 35.8 mm, 25.85 mm |
| Size / Dimension [x] | 1.018 in |
| Size / Dimension [y] | 1.409 in |
| Size / Dimension [z] | 0.394 in |
| Voltage - Forward (Vf) (Typ) | 1.85 V |
| Wavelength - Peak | 660 nm |
DC08-11 Series
| Part | Common Pin | Power Dissipation (Max) [Max] | Current - Test | Wavelength - Peak | Millicandela Rating | Package / Case | Package / Case | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Number of Characters | Display Type | Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kingbright | Common Cathode | 75 mw | 20 mA | 660 nm | 32 mcd | 22 mm | 18-DIP | 0.866 in | 20.32 mm | 0.8 in | 0.394 in | 1.409 in | 10 mm 25.85 mm 35.8 mm | 1.018 in | 1.85 V | 2 | 7-Segment | Red | |||
Kingbright | Common Cathode | 62.5 mW | 20 mA | 565 nm | 11 mcd | 22 mm | 18-DIP | 0.866 in | 20.32 mm | 0.8 in | 0.394 in | 1.409 in | 10 mm 25.85 mm 35.8 mm | 1.018 in | 2.2 V | 2 | 7-Segment | Green | |||
Kingbright | Common Cathode | 75 mw | 20 mA | 645 nm | 75 mcd | 22 mm | 18-DIP | 0.866 in | 20.32 mm | 0.8 in | 1.4 " | 1.01 in | 0.394 " | 1.95 V | 2 | 7-Segment | Red | 25.85 mm | 10 mm | 35.8 mm | |
Kingbright | Common Cathode | 75 mw | 20 mA | 627 nm | 8.8 mcd | 22 mm | 18-DIP | 0.866 in | 20.32 mm | 0.8 in | 0.394 in | 1.409 in | 10 mm 25.85 mm 35.8 mm | 1.018 in | 2 V | 2 | 7-Segment | Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DC08-11 Series
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 1.85V 20mA 1.018" H x 1.409" W x 0.394" D (25.85mm x 35.80mm x 10.00mm) 18-DIP (0.866", 22.00mm)
