940-44-084-24-000000

Active

Mill-Max Manufacturing Corp.

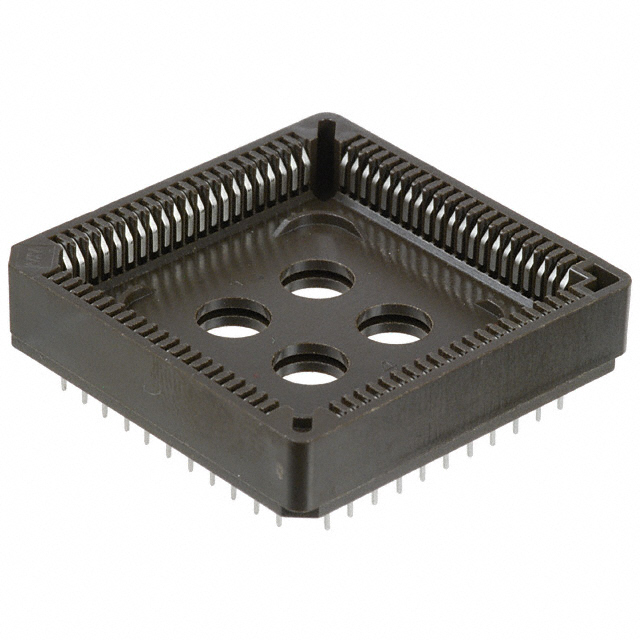

CONN SOCKET PLCC 84POS TIN

Deep-Dive with AI

Search across all available documentation for this part.

940-44-084-24-000000

Active

Mill-Max Manufacturing Corp.

CONN SOCKET PLCC 84POS TIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	940-44-084-24-000000

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.3 mm
Termination Post Length	0.13 in
Type	PLCC

940-44 Series

Part	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Material - Post	Contact Resistance	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Pitch - Post	Pitch - Post	Mounting Type	Termination	Termination Post Length	Termination Post Length	Features	Type	Material Flammability Rating	Current Rating (Amps)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 940-44-084-24-000000	0.1 in	2.54 mm	200 µin	5.08 µm	Tin	Brass Alloy	30 mOhm	Beryllium Copper	-55 °C	125 °C	150 Áin	3.81 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Through Hole	Solder	3.3 mm	0.13 in	Closed Frame	PLCC	UL94 V-0	1 A
Mill-Max Manufacturing Corp. 940-44-020-24-000000	0.1 in	2.54 mm	200 µin	5.08 µm	Tin	Brass Alloy	30 mOhm	Beryllium Copper	-55 °C	125 °C	150 Áin	3.81 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Through Hole	Solder	3.3 mm	0.13 in	Closed Frame	PLCC	UL94 V-0	1 A	5	20	4
Mill-Max Manufacturing Corp. 940-44-044-17-400004		0.05 in	200 µin	5.08 µm	Tin						150 Áin	3.81 Ám		1.27 mm	0.05 in	Surface Mount	Solder			Closed Frame	PLCC	UL94 V-0					1.27 mm	4 11	44
Mill-Max Manufacturing Corp. 940-44-068-17-400004		0.05 in	200 µin	5.08 µm	Tin	Brass Alloy	30 mOhm	Beryllium Copper	-55 °C	125 °C	150 Áin	3.81 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.27 mm	0.05 in	Surface Mount	Solder			Closed Frame	PLCC	UL94 V-0	1 A	17		4	1.27 mm			68
Mill-Max Manufacturing Corp. 940-44-068-17-400000		0.05 in	200 µin	5.08 µm	Tin	Brass Alloy	30 mOhm	Beryllium Copper	-55 °C	125 °C	150 Áin	3.81 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.27 mm	0.05 in	Surface Mount	Solder			Closed Frame	PLCC	UL94 V-0	1 A	17		4	1.27 mm			68
Mill-Max Manufacturing Corp. 940-44-032-17-400004		0.05 in	200 µin	5.08 µm	Tin						150 Áin	3.81 Ám		1.27 mm	0.05 in	Surface Mount	Solder			Closed Frame	PLCC	UL94 V-0					1.27 mm		32
Mill-Max Manufacturing Corp. 940-44-020-17-400000		0.05 in	200 µin	5.08 µm	Tin	Brass Alloy	30 mOhm	Beryllium Copper	-55 °C	125 °C	150 Áin	3.81 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.27 mm	0.05 in	Surface Mount	Solder			Closed Frame	PLCC	UL94 V-0	1 A	5	20	4	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.40
		16	$ 2.79
		32	$ 2.66
		64	$ 2.53
		112	$ 2.43
		256	$ 2.30
		512	$ 2.19
		1008	$ 2.08
		2512	$ 1.95

Description

General part information

940-44 Series

84 (4 x 21) Pos PLCC Socket Tin Through Hole
