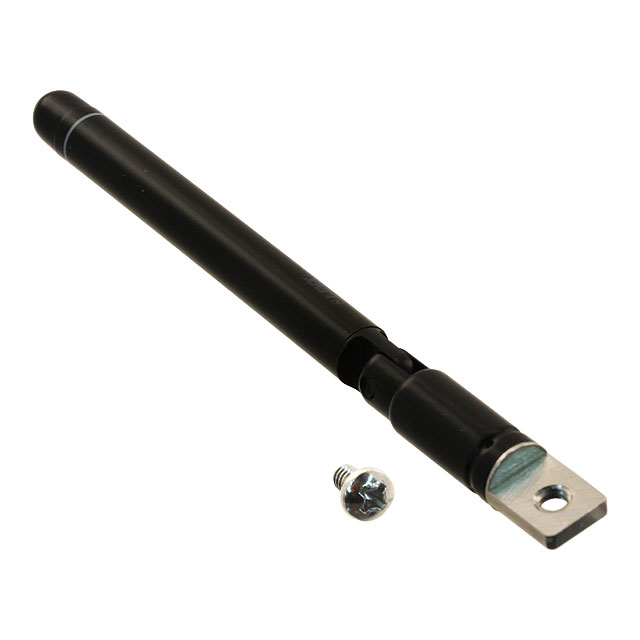

ANT-868-PW-RA

Active

TE Connectivity Linx

RF ANT 868MHZ WHIP TILT SCREW-MT

Deep-Dive with AI

Search across all available documentation for this part.

ANT-868-PW-RA

Active

TE Connectivity Linx

RF ANT 868MHZ WHIP TILT SCREW-MT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-868-PW-RA

Antenna Type	Tilt, Whip
Applications	Sensor Networks, LoRa, ISM, Sigfox
Frequency Group [Max]	1 GHz
Frequency Group [Min]	300 MHz
Frequency Range [Max]	960 MHz
Frequency Range [Min]	780 MHz
Gain	4 dBi
Height (Max)	99 mm
Height (Max) [Max]	3.898 in
Number of Bands	1
RF Family/Standard	General ISM
Termination	Screw-Mount
VSWR	1.9

ANT-868 Series

Part	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Applications	Number of Bands	VSWR	Frequency Group [Max]	Frequency Group [Min]	Termination	Gain	Features	Ingress Protection	Features	Height (Max) [Max] [z]	Height (Max)	Frequency (Center/Band)	Power - Max [Max]	Return Loss
TE Connectivity Linx ANT-868-CW-HWR-RPS	Tilt Whip	883 MHz	853 MHz	Connector Mount	142 mm	5.591 in	General ISM	ISM LoRa Sensor Networks Sigfox	1	2	1 GHz	300 MHz	RP-SMA Male	-2.3 dBi
TE Connectivity Linx ANT-868-ID-2000-SMA	Whip Straight	898 MHz	848 MHz	Bracket Mount	124.6 mm	4.906 in	General ISM	ISM LoRa Sensor Networks Sigfox	1	1.9	1 GHz	300 MHz		0.6 dBi	Cable - 2m	IP67
TE Connectivity Linx ANT-868-SP	Chip	885 MHz	850 MHz	Surface Mount	1.5 mm	0.059 in	General ISM	ISM LoRa Sensor Networks Sigfox	1	1.9	1 GHz	300 MHz	Solder	1.1 dBi
TE Connectivity Linx ANT-868-WRT-SMA	Dome	880 MHz	855 MHz				General ISM	ISM LoRa Sensor Networks Sigfox	1	1.9	1 GHz	300 MHz		1.5 dBic	Cable		216 mm	0.433 in	11 mm	800 MHz 850 MHz
TE Connectivity Linx ANT-868-CHP-T	Chip	873 MHz	863 MHz	Surface Mount	1.7 mm	0.067 "	General ISM	ISM LoRa Sensor Networks Sigfox	1	2	1 GHz	300 MHz	Solder	0.5 dBi							3 W
TE Connectivity Linx ANT-868-CW-HD-SMA	Whip Straight	900 MHz	820 MHz	Connector Mount	75 mm	2.953 in	General ISM	ISM LoRa Sensor Networks Sigfox	1	2	1 GHz	300 MHz		-1 dBi
TE Connectivity Linx ANT-868-PW-RA	Tilt Whip	960 MHz	780 MHz			3.898 in	General ISM	ISM LoRa Sensor Networks Sigfox	1	1.9	1 GHz	300 MHz	Screw-Mount	4 dBi					99 mm
TE Connectivity Linx ANT-868-CW-RAH-SMA				Connector Mount		1.85 in	General ISM	ISM LoRa Sensor Networks Sigfox	1	1.9	1 GHz	300 MHz		0.6 dBi					47 mm
TE Connectivity Linx ANT-868-OC-LG-RPS	Tilt Whip	876 MHz	862 MHz	Connector Mount	193.5 mm	7.62 in	General ISM	ISM LPWA	1	2.3	1 GHz	300 MHz	RP-SMA Female	0.4 dBi							10 W	8.1 dB
TE Connectivity Linx ANT-868-CW-HW-SMA	Whip Straight	880 MHz	855 MHz	Connector Mount	135.5 mm	5.335 in	General ISM	ISM LoRa Sensor Networks Sigfox	1	1.9	1 GHz	300 MHz		0 dBi

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.65
		250	$ 3.52
		1000	$ 3.36

Description

General part information

ANT-868 Series

868MHz ISM, LoRa, Sensor Networks, SigFox Whip, Tilt RF Antenna 780MHz ~ 960MHz 4dBi Screw-Mount Panel Mount
