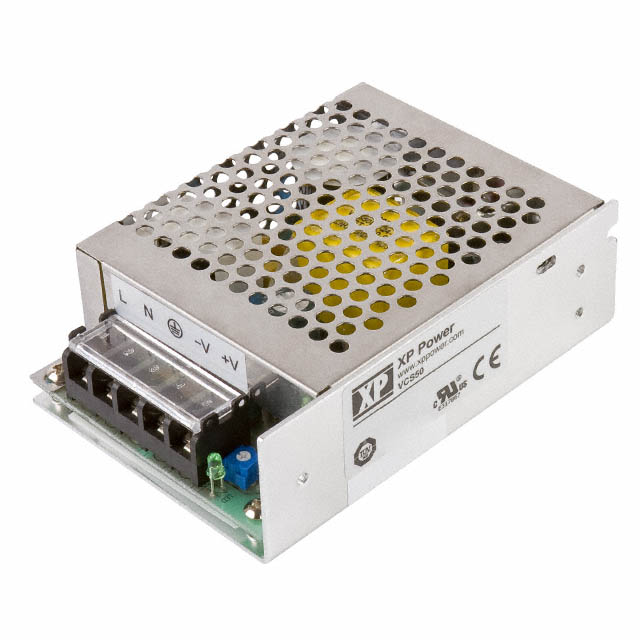

VCS50US24

Active

XP POWER

AC/DC CONVERTER 24V 50W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 24V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	VCS50US24

Applications	ITE (Commercial)
Approval Agency	CB
Current - Output 1	2.1 A
Efficiency	88 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	50 W
Size / Dimension [x]	110.5 mm
Size / Dimension [x]	4.35 "
Size / Dimension [y]	78 mm
Size / Dimension [y]	3.07 in
Size / Dimension [z]	35 mm
Size / Dimension [z]	1.38 in
Standard Number	62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Type	Standard Number	Number of Outputs	Features	Mounting Type	Applications	Efficiency	Current - Output 1	Voltage - Output 1	Approval Agency
XP POWER VCS50US24	50 W	78 mm	110.5 mm	35 mm	3.07 in	4.35 "	1.38 in	3000 V	-25 °C	70 °C	Enclosed	62368-1	1	Adjustable Output DC Input Capable Universal Input	Chassis Mount	ITE (Commercial)	88 %	2.1 A	24 V	CB
XP POWER VCS50US05	50 W	78 mm	110.5 mm	35 mm	3.07 in	4.35 "	1.38 in	3000 V	-25 °C	70 °C	Enclosed	62368-1	1	Adjustable Output DC Input Capable Universal Input	Chassis Mount	ITE (Commercial)	79 %	8 A	5 V	CB
XP POWER VCS50US15	50 W	78 mm	110.5 mm	35 mm	3.07 in	4.35 "	1.38 in	3000 V	-25 °C	70 °C	Enclosed	62368-1	1	Adjustable Output DC Input Capable Universal Input	Chassis Mount	ITE (Commercial)	86 %	3.3 A	15 V	CB
XP POWER VCS50US48	50 W	78 mm	110.5 mm	35 mm	3.07 in	4.35 "	1.38 in	3000 V	-25 °C	70 °C	Enclosed	62368-1	1	Adjustable Output DC Input Capable Universal Input	Chassis Mount	ITE (Commercial)	88 %	1.05 A	48 V	CB
