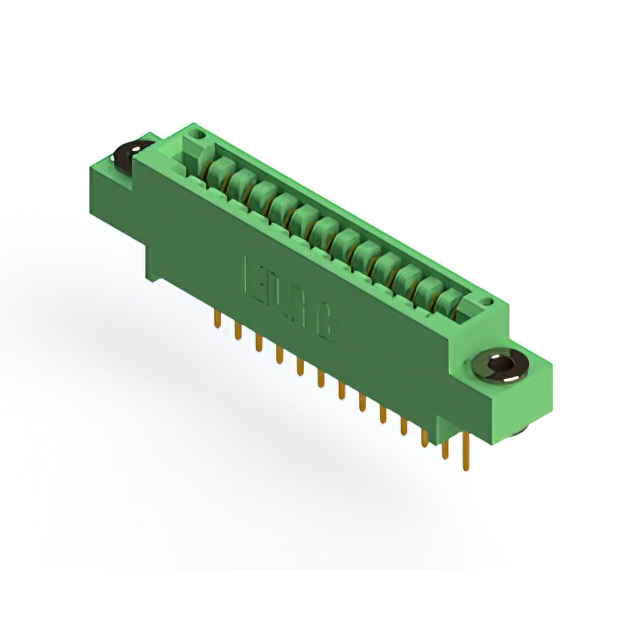

346-013-526-603
ActiveEDAC Inc.
CONN EDGE SGL FMALE 13POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-013-526-603
ActiveEDAC Inc.
CONN EDGE SGL FMALE 13POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-013-526-603 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 13 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
346-013 Series
| Part | Pitch [x] | Pitch [x] | Mounting Type | Number of Rows | Contact Material | Contact Finish | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Termination Rows | Read Out | Color | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole Right Angle | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | ||||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder Eyelet(s) | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole Right Angle | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | Floating Bobbin Top Mount Opening | 0.116 in | 2.95 mm | |||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole Right Angle | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | 1 | Copper Alloy | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | 13 | 1 | Single | Green | Cantilever | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Solder Eyelet(s) | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 13 | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.79 | |
Description
General part information
346-013 Series
13 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
