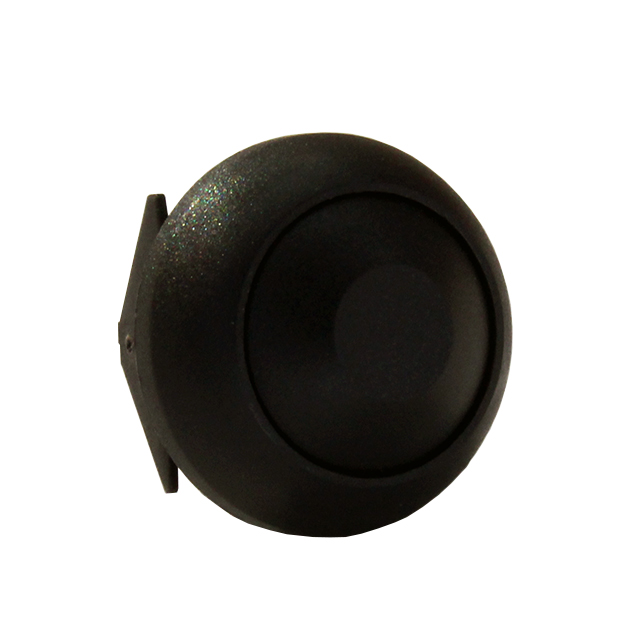

ESANMF2FBX

Active

CIT Relay and Switch

SWITCH PB SPST-NO 125MA 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST-NO 125MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ESANMF2FBX

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	125 mA
Electrical Life	500000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 VDC

Part	Panel Cutout Dimensions [diameter]	Ingress Protection	Mounting Type	Actuator Marking	Termination Style	Type	Voltage Rating - DC	Circuit	Current Rating (Amps)	Actuator Type	Electrical Life	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Switch Function	Voltage Rating - AC
CIT Relay and Switch ESANMF2FBX	13.6 mm	IP67 - Dust Tight Waterproof	Panel Mount Snap-In	No Marking	Solder Lug	Standard	50 VDC	SPST-NO	125 mA	Button Flush Round	500000 Cycles	Black	85 °C	-40 °C	1000000 Cycles	Off-Mom	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
