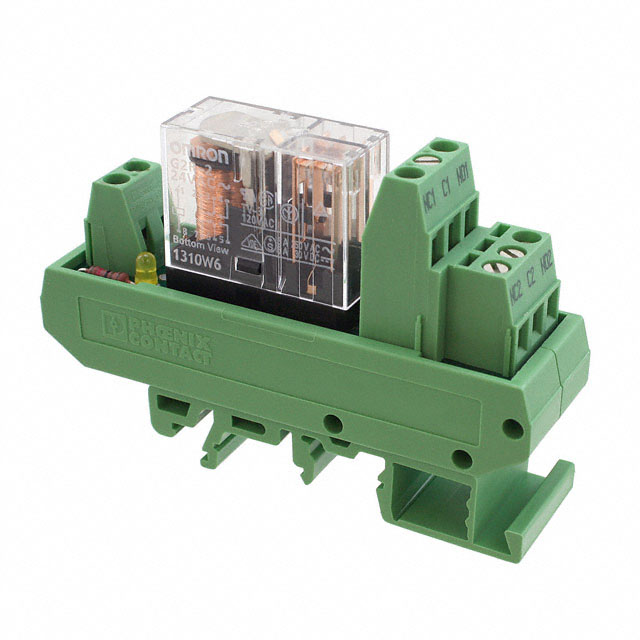

5520569

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 5A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 5A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	5520569

Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	5 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Relay Type	General Purpose
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Screw Terminal

Part	Features	Coil Type	Switching Voltage [Max]	Relay Type	Termination Style	Mounting Type	Contact Form	Contact Rating (Current)	Coil Voltage
Phoenix Contact 5520569	Lighted Indicator Socket Included	Non Latching	30 VDC 250 VAC	General Purpose	Screw Terminal	DIN Rail	DPDT (2 Form C)	5 A	24 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.57

General part information

General Purpose Relay DPDT (2 Form C) 24VAC Coil DIN Rail
