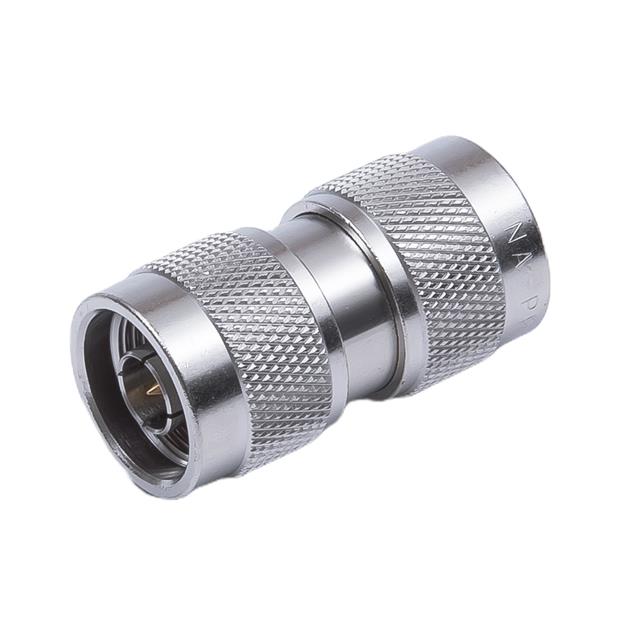

NA-PP

Active

To-Conne Co., Ltd. (TYC)

COAX ADAPT N TO N

Search across all available documentation for this part.

Active

To-Conne Co., Ltd. (TYC)

COAX ADAPT N TO N

Technical Specifications

Parameters and characteristics for this part

Part	Body Finish	Features	Housing Color	Center Contact Material	Connector Style	Connector Type	Center Contact Plating	Number of Ports	Shield Termination	Mounting Feature	Voltage Rating	Body Material	Contact Termination	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Convert From (Adapter End)	Conversion Type	Style	Impedance	Adapter Type	Adapter Series	Center Gender	Convert To (Adapter End)	Frequency - Max [Max]
To-Conne Co., Ltd. (TYC) SHV-R	Nickel	Extended Insulation	Silver	Brass	SHV	Female Socket Jack	Gold	1	Solder	Flange	3500 V	Brass	Solder Cup	Bayonet Lock
To-Conne Co., Ltd. (TYC) NA-PP	Nickel			Brass			Gold					Brass			85 °C	-40 °C	Free Hanging (In-Line)	F Plug Male Pin	Same Series	Straight	50 Ohms	Plug to Plug	N to N	Male to Male	F Plug Male Pin	10 GHz
To-Conne Co., Ltd. (TYC) F-LAC	Nickel			Brass			Gold					Brass			85 °C	-40 °C	Free Hanging (In-Line) Right Angle	F Jack Female Socket	Same Series	Right Angle	75 Ohms	Plug to Jack	F to F		F Plug Male Pin	2.7 GHz
To-Conne Co., Ltd. (TYC) N-R					N Type	Female Socket Jack		1	Solder	Flange	500 V		Solder Cup		85 °C	-40 °C					50 Ohms					10 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector F Plug, Male Pin To F Plug, Male Pin 50 Ohms
