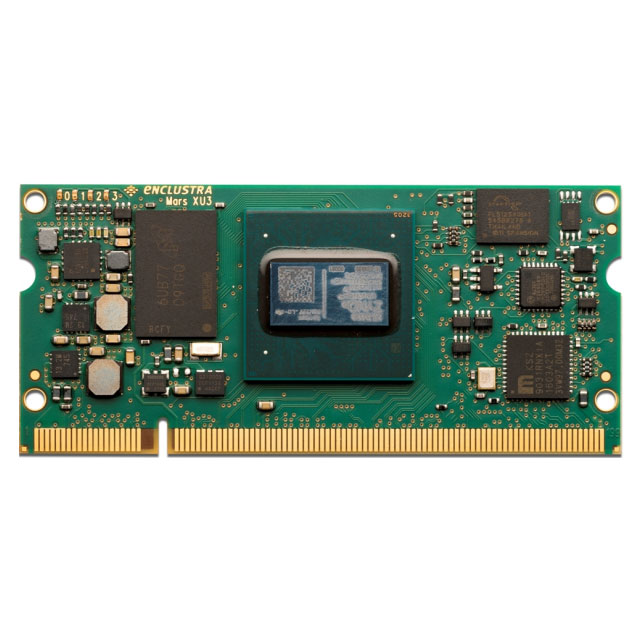

MA-XU3-2CG-1E-D10-R2

Obsolete

Enclustra FPGA Solutions

SOM ZYNQ US+ ZU2CG 1GB

Search across all available documentation for this part.

Obsolete

Enclustra FPGA Solutions

SOM ZYNQ US+ ZU2CG 1GB

Technical Specifications

Parameters and characteristics for this part

Specification	MA-XU3-2CG-1E-D10-R2

Connector Type	SO-DIMM-200
Core Processor	ARM® Quad-/Dual-Core Cortex-A53, Mali-400MP2 GPU, ARM® Dual-Core Cortex-R5
Flash Size	16 GB
Module/Board Type	FPGA Core, MPU
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
RAM Size	1 GB
Size / Dimension [x]	2.66 in
Size / Dimension [x]	67.6 mm
Size / Dimension [y]	1.18 in
Size / Dimension [y]	30 mm
Speed	533 MHz
Speed	1.333 GHz

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Module/Board Type	RAM Size	Connector Type	Speed	Speed	Core Processor	Flash Size
Enclustra FPGA Solutions MA-XU3-2CG-1E-D10-R2	1.18 in	2.66 in	67.6 mm	30 mm	0 °C	85 °C	FPGA Core MPU	1 GB	SO-DIMM-200	533 MHz	1.333 GHz	ARM® Dual-Core Cortex-R5 ARM® Quad-/Dual-Core Cortex-A53 Mali-400MP2 GPU	16 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- Embedded Module ARM® Quad-/Dual-Core Cortex-A53, ARM® Dual-Core Cortex-R5, Mali-400MP2 GPU 533MHz, 1.333GHz 1GB 16GB
