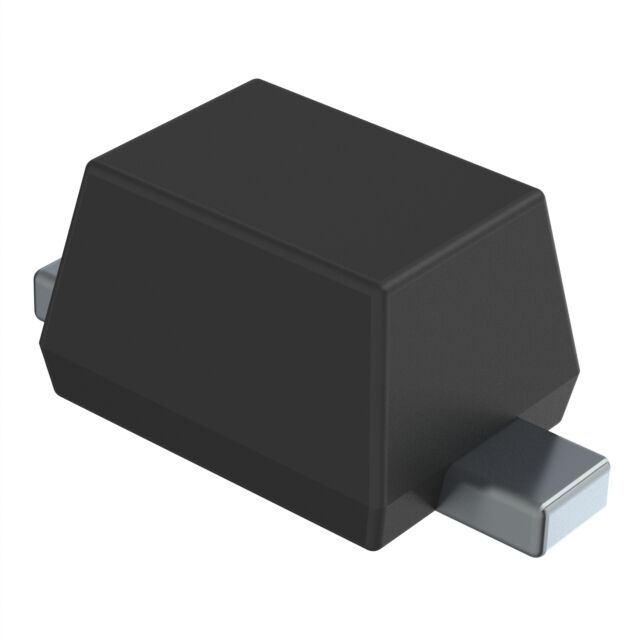

BZT52B33S RRG

Active

Taiwan Semiconductor Corporation

DIODE ZENER 33V 200MW SOD323F

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE ZENER 33V 200MW SOD323F

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Voltage - Zener (Nom) (Vz)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Power - Max [Max]	Operating Temperature	Impedance (Max) (Zzt) [Max]
Taiwan Semiconductor Corporation BZT52B27-G RHG	SOD-123	27 V	100 nA	900 mV	Surface Mount	2 %	-55 °C	150 °C	SOD-123	410 mW
Taiwan Semiconductor Corporation BZT52B39 RHG	SOD-123F	39 V	45 nA	1 V	Surface Mount	2 %			SOD-123F	500 mW	150 °C
Taiwan Semiconductor Corporation BZT52B6V8-G	SOD-123	6.8 V	2 µA	900 mV	Surface Mount	2 %	-55 °C	150 °C	SOD-123	410 mW		15 Ohms
Taiwan Semiconductor Corporation BZT52B5V6S RRG	SC-90 SOD-323F	5.6 V	900 nA	1 V	Surface Mount	2 %	-65 °C	150 °C	SOD-323F	200 mW		40 Ohms
Taiwan Semiconductor Corporation BZT52B62 RHG	SOD-123F	62 V	45 nA	1 V	Surface Mount	2 %			SOD-123F	500 mW	150 °C	215 Ohms
Taiwan Semiconductor Corporation BZT52B5V6 RHG	SOD-123F	5.6 V	900 nA	1 V	Surface Mount	2 %			SOD-123F	500 mW	150 °C	40 Ohms
Taiwan Semiconductor Corporation BZT52B33S RRG	SC-90 SOD-323F	33 V	45 nA	1 V	Surface Mount	2 %	-65 °C	150 °C	SOD-323F	200 mW
Taiwan Semiconductor Corporation BZT52B8V2-G	SOD-123	8.2 V	700 nA	900 mV	Surface Mount	2 %	-55 °C	150 °C	SOD-123	410 mW		15 Ohms
Taiwan Semiconductor Corporation BZT52B3V0-G RHG	SOD-123	3 V	10 µA	900 mV	Surface Mount	2 %	-55 °C	150 °C	SOD-123	410 mW		95 Ohms
Taiwan Semiconductor Corporation BZT52B9V1 RHG	SOD-123F	9.1 V	450 nA	1 V	Surface Mount	2 %			SOD-123F	500 mW	150 °C	15 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Zener Diode 33 V 200 mW ±2% Surface Mount SOD-323F

Technical documentation and resources

No documents available
