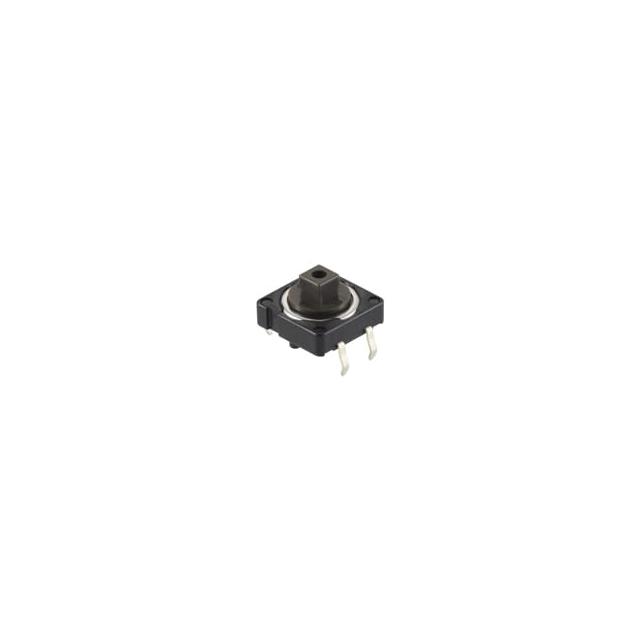

SKHCBGA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKHCBGA010

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	12 mm
Outline [y]	12 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Illumination	Switch Travel [custom]	Outline [y]	Outline [x]	Termination Style	Actuator Orientation	Contact Rating @ Voltage	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Height off PCB, Vertical [z]	Operating Force	Mounting Type	Mechanical Life	Switch Function
Alps Alpine SKHCBGA010	Non-Illuminated	0.3 mm	12 mm	12 mm	PC Pin	Top Actuated	0.05 A 12 VDC	Standard	85 °C	-40 °C	SPST-NO	4.3 mm	260 gf	Through Hole	500000 Cycles	Off-Mom
Alps Alpine SKHCBFA010	Non-Illuminated	0.3 mm	12 mm	12 mm	PC Pin	Top Actuated	0.05 A 12 VDC	Standard	85 °C	-40 °C	SPST-NO	4.3 mm	130 gf	Through Hole	1000000 Cycles	Off-Mom
Alps Alpine SKHCBEA010	Non-Illuminated	0.3 mm	12 mm	12 mm	PC Pin	Top Actuated	0.05 A 12 VDC	Plunger for Cap	85 °C	-40 °C	SPST-NO	4.3 mm	130 gf	Through Hole	1000000 Cycles	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
