5938-1503-000

Active

Radiall USA, Inc.

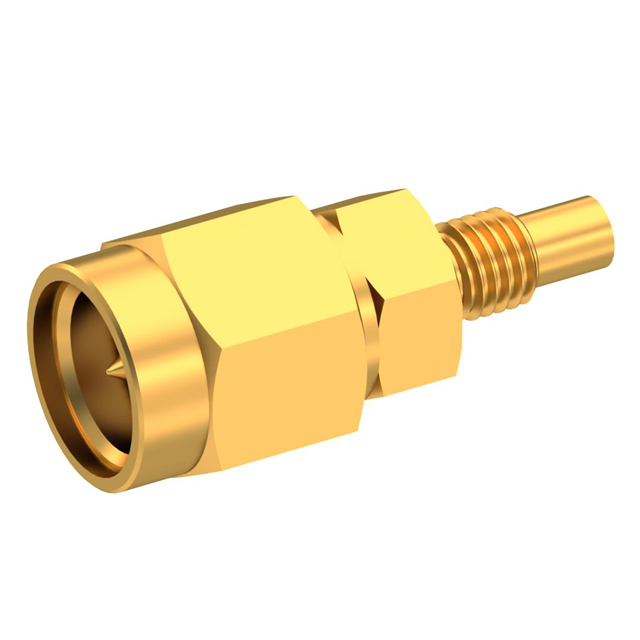

COAX ADAPT SMA TO SSMC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

COAX ADAPT SMA TO SSMC

Technical Specifications

Parameters and characteristics for this part

Specification	5938-1503-000

Adapter Series	SMA to SSMC
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SSMC Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Convert To (Adapter End)	Adapter Type	Center Contact Plating	Center Gender	Frequency - Max [Max]	Mounting Type	Body Finish	Convert From (Adapter End)	Dielectric Material	Impedance	Adapter Series	Body Material	Center Contact Material	Style	Conversion Type
Radiall USA, Inc. 5938-1503-000	Male Pin SSMC Jack	Plug to Jack	Gold	Male to Male	12.4 GHz	Free Hanging (In-Line)	Gold	SMA Plug Male Pin	Polytetrafluoroethylene (PTFE)	50 Ohms	SMA to SSMC	Stainless Steel	Beryllium Copper	Straight	Between Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 162.20

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SSMC Jack, Male Pin 50 Ohms
