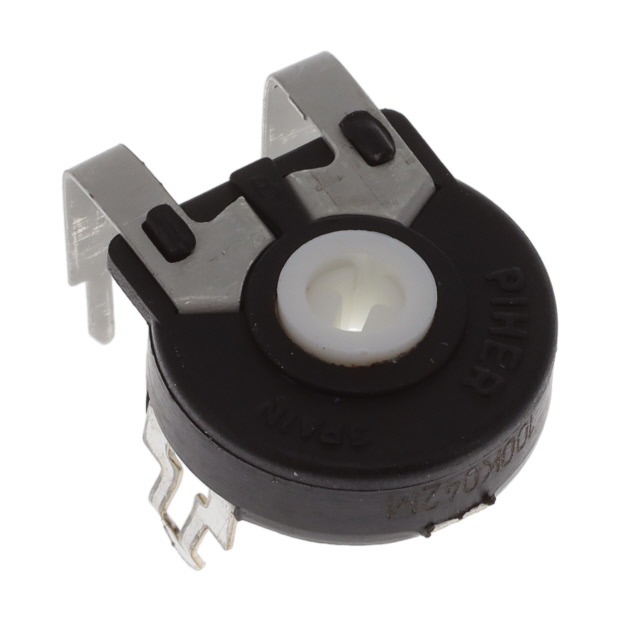

PT15LV18-104A2020-S

Active

Amphenol Piher Sensing Systems

TRIMMER 100KOHM 0.25W PC PIN TOP

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 100KOHM 0.25W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Termination Style	Power (Watts)	Power (Watts)	Temperature Coefficient	Mounting Type	Adjustment Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Resistive Material	Tolerance	Resistance
Amphenol Piher Sensing Systems PT15LV18-504A2020-S	1	PC Pins	0.25 W	250 mW	300 ppm/°C	Through Hole	Top Adjustment	15 mm	0.591 in	Carbon	20 %
Amphenol Piher Sensing Systems PT15LV18-252A2020-S	1	PC Pins	0.25 W	250 mW	300 ppm/°C	Through Hole	Top Adjustment	15 mm	0.591 in	Carbon	20 %	2.5 kOhms
Amphenol Piher Sensing Systems PT15LV18-104A2020-S	1	PC Pins	0.25 W	250 mW	300 ppm/°C	Through Hole	Top Adjustment	15 mm	0.591 in	Carbon	20 %	100 kOhms
Amphenol Piher Sensing Systems PT15LV18-103A2020-S	1	PC Pins	0.25 W	250 mW	300 ppm/°C	Through Hole	Top Adjustment	15 mm	0.591 in	Carbon	20 %	10000 Ohms
Amphenol Piher Sensing Systems PT15LV18-203A2020-S	1	PC Pins	0.25 W	250 mW	300 ppm/°C	Through Hole	Top Adjustment	15 mm	0.591 in	Carbon	20 %	20 kOhms
Amphenol Piher Sensing Systems PT15LV18-502A2020-S	1	PC Pins	0.25 W	250 mW	300 ppm/°C	Through Hole	Top Adjustment	15 mm	0.591 in	Carbon	20 %	5 kOhms
Amphenol Piher Sensing Systems PT15LV18-202A2020-S	1	PC Pins	0.25 W	250 mW	300 ppm/°C	Through Hole	Top Adjustment	15 mm	0.591 in	Carbon	20 %	2 kOhms
Amphenol Piher Sensing Systems PT15LV18-254A2020-S	1	PC Pins	0.25 W	250 mW	300 ppm/°C	Through Hole	Top Adjustment	15 mm	0.591 in	Carbon	20 %	250 kOhms
Amphenol Piher Sensing Systems PT15LV18-501A2020-S	1	PC Pins	0.25 W	250 mW	300 ppm/°C	Through Hole	Top Adjustment	15 mm	0.591 in	Carbon	20 %	500 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
