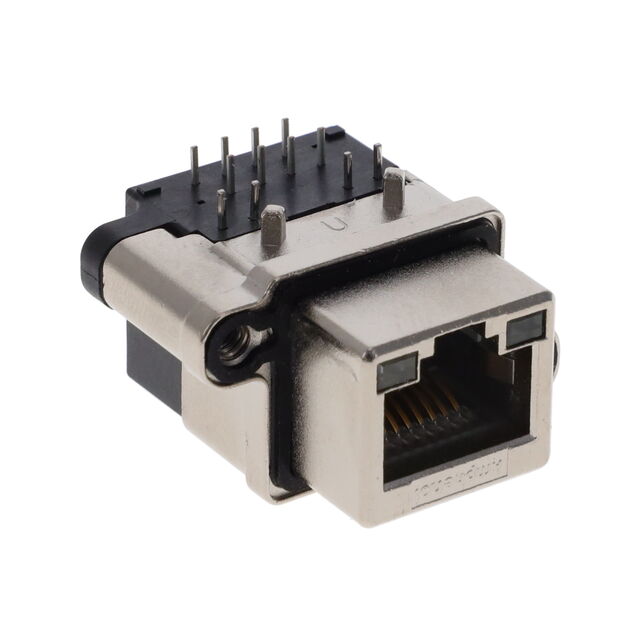

MRJR-9381-0C

Active

Amphenol ICC (Commercial Products)

MRJR SERIES CAT 6A RUGGED

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

MRJR SERIES CAT 6A RUGGED

Technical Specifications

Parameters and characteristics for this part

Specification	MRJR-9381-0C

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Guide
Housing Material	Polycarbonate (PC)
Ingress Protection	IP67 - Dust Tight, Waterproof
LED Color	Yellow, Green
Mounting Type	Panel Mount, Flange (2 Hole), Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat6a
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

Part	Ratings	Mounting Type	Shielding	Housing Material	Connector Type	LED Color	Number of Rows	Number of Positions/Contacts	Features	Number of Ports	Contact Finish Thickness	Contact Finish Thickness	Tab Direction	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Contact Finish	Termination	Ingress Protection
Amphenol ICC (Commercial Products) MRJR-9381-0C	Cat6a	Panel Mount Flange (2 Hole) Through Hole	Unshielded	Polycarbonate (PC)	Jack	Green Yellow	1	8p8c (RJ45 Ethernet)	Board Guide	1	50 µin	1.27 µm	Down	Phosphor Bronze	-40 °C	105 ░C	90 °	Gold	Solder	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat6a
