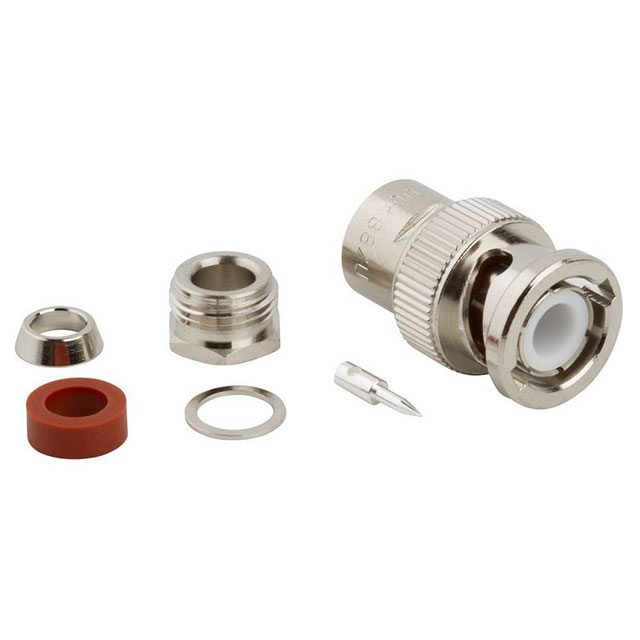

000-14625
ActiveAmphenol RF
CONN RPBNC PLUG STR 50 OHM PUSH
Deep-Dive with AI
Search across all available documentation for this part.
000-14625
ActiveAmphenol RF
CONN RPBNC PLUG STR 50 OHM PUSH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 000-14625 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | RP-BNC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Push On |
| Dielectric Material | Tetrafluoroethylene (TFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Clamp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.01 | |
| 10 | $ 60.57 | |||
| 25 | $ 58.24 | |||
| 50 | $ 56.30 | |||
| 100 | $ 53.19 | |||
Description
General part information
000-14 Series
RP-BNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Push On
