BLS2731-110,114

Obsolete

Ampleon USA Inc.

RF TRANS NPN 75V 3.1GHZ CDFM2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF TRANS NPN 75V 3.1GHZ CDFM2

Technical Specifications

Parameters and characteristics for this part

Specification	BLS2731-110,114

Current - Collector (Ic) (Max) [Max]	12 A
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	40
Frequency - Transition	3.1 GHz
Gain	7 dBi
Mounting Type	Chassis Mount
Operating Temperature	200 °C

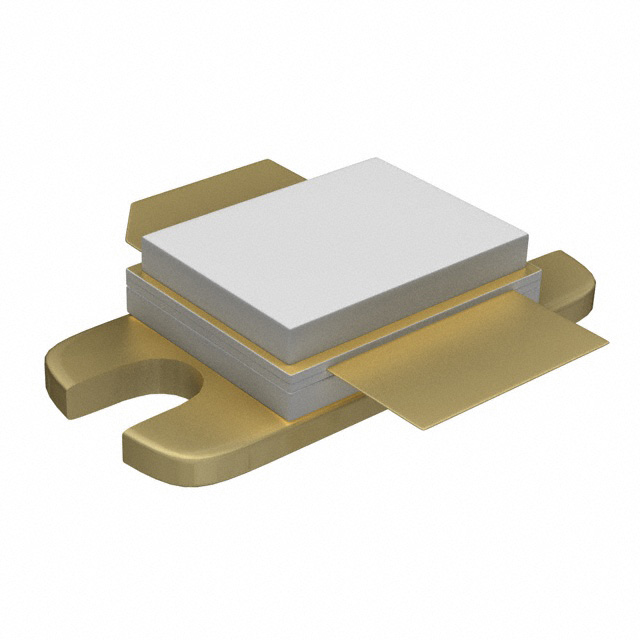

Package / Case	SOT-423A
Power - Max [Max]	500 W
Supplier Device Package	CDFM2
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	75 V

Part	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Package / Case	Gain	Frequency - Transition	Supplier Device Package	Transistor Type	Operating Temperature	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
Ampleon USA Inc. BLS2731-110,114	75 V	Chassis Mount	SOT-423A	7 dBi	3.1 GHz	CDFM2	NPN	200 °C	12 A	500 W	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 75V 12A 3.1GHz 500W Chassis Mount CDFM2
