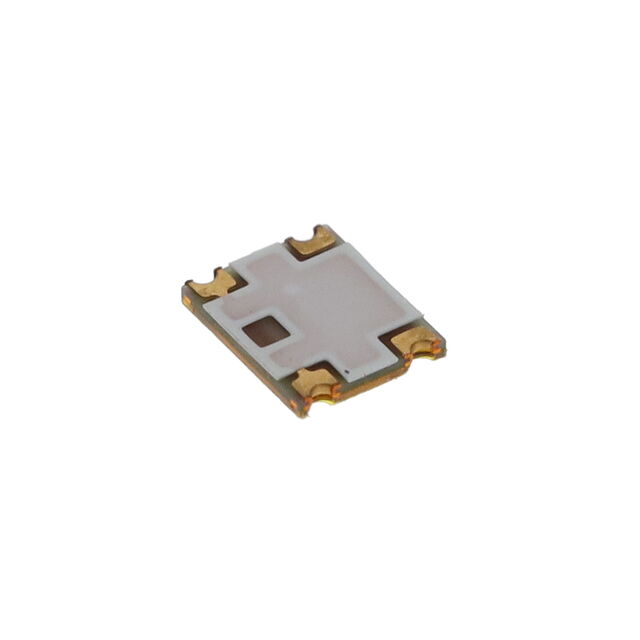

LS70C2DS-T
ActiveCitizen Finedevice Co Ltd
SWITCH TACTILE SPST-NO 0.02A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS70C2DS-T
ActiveCitizen Finedevice Co Ltd
SWITCH TACTILE SPST-NO 0.02A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LS70C2DS-T |
|---|---|
| Actuator Height off PCB, Vertical | 0.6 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 12 VDC, 0.02 A |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 163 gf |
| Outline [x] | 2.8 mm |
| Outline [y] | 2.3 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.15 mm |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.34 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| 2500 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.36 | |||
| 25 | $ 0.34 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| 2500 | $ 0.22 | |||
| Tape & Reel (TR) | 5000 | $ 0.16 | ||
Description
General part information
LS70C2 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
