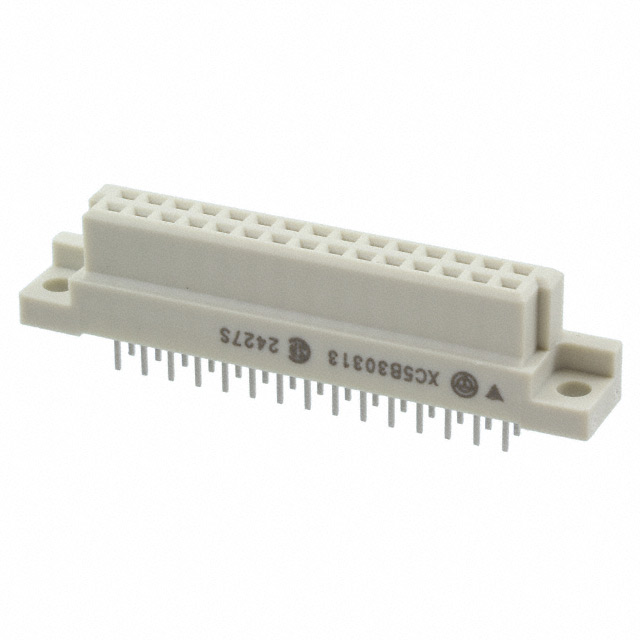

XC5B-3031-3A

Active

Omron Electronics Inc-EMC Div

CONN DIN RCPT 30POS

Deep-Dive with AI

Search across all available documentation for this part.

XC5B-3031-3A

Active

Omron Electronics Inc-EMC Div

CONN DIN RCPT 30POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC5B-3031-3A

Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	2 A
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	B

XC5B Series

Part	Connector Type	Number of Positions	Style	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material - Insulation	Current Rating (Amps)	Pitch [x]	Pitch [x]	Number of Rows	Material Flammability Rating	Contact Finish	Number of Positions Loaded	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Omron Electronics Inc-EMC Div XC5B-2431-3	Receptacle Female Sockets	24	B	-55 °C	125 °C	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0	Gold	All	Through Hole	16 µin	0.41 µm
Omron Electronics Inc-EMC Div XC5B-3031-3A	Receptacle Female Sockets	30	B	-55 °C	125 °C		Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0			Through Hole
Omron Electronics Inc-EMC Div XC5B-3231-0	Receptacle Female Sockets		B	-55 °C	125 °C	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0	Gold	All	Through Hole	16 µin	0.41 µm
Omron Electronics Inc-EMC Div XC5B-6421-A	Receptacle Female Sockets	64	B	-55 °C	125 °C	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0	Gold	All	Through Hole	16 µin	0.41 µm
Omron Electronics Inc-EMC Div XC5B-0121-A	Receptacle Female Sockets	100	B	-55 °C	125 °C		Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0			Through Hole
Omron Electronics Inc-EMC Div XC5B-6431-0A	Receptacle Female Sockets	64	B	-55 °C	125 °C	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0	Gold	All	Through Hole	16 µin	0.41 µm
Omron Electronics Inc-EMC Div XC5B-2021	Receptacle Female Sockets	20	B	-55 °C	125 °C	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0	Gold	All	Through Hole	16 µin	0.41 µm
Omron Electronics Inc-EMC Div XC5B-2031-0A	Receptacle Female Sockets	20	B	-55 °C	125 °C		Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0			Through Hole
Omron Electronics Inc-EMC Div XC5B-1031-S036	Receptacle Female Sockets	10	B	-55 °C	125 °C	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0	Gold	All	Through Hole	16 µin	0.41 µm
Omron Electronics Inc-EMC Div XC5B-0131-0	Receptacle Female Sockets	100	B	-55 °C	125 °C		Polybutylene Terephthalate (PBT) Glass Filled	2 A	2.54 mm	0.1 in	2	UL94 V-0			Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 3.90

Description

General part information

XC5B Series

30 Position Din Connector Receptacle, Female Sockets Through Hole
