R191413000

Active

Radiall USA, Inc.

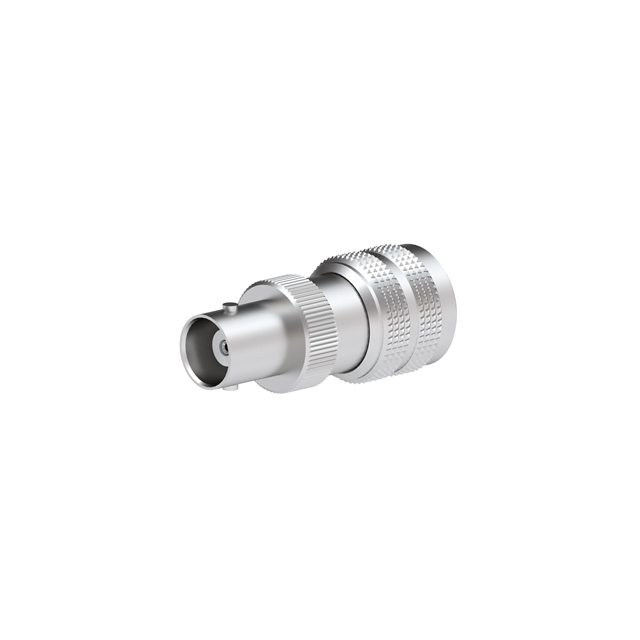

BNC FEMALE - MQ MALE STRAIGHT AD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC FEMALE - MQ MALE STRAIGHT AD

Technical Specifications

Parameters and characteristics for this part

Specification	R191413000

Adapter Series	BNC to MQ
Adapter Type	Plug to Jack
Body Finish	Chromium
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	MQ Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On, Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Adapter Type	Convert From (Adapter End)	Fastening Type	Conversion Type	Center Contact Material	Frequency - Max [Max]	Style	Adapter Series	Center Gender	Body Finish	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Mating Cycles	Body Material	Center Contact Plating	Impedance	Dielectric Material
Radiall USA, Inc. R191417000	Plug to Plug	BNC Plug Male Pin	Bayonet Lock Threaded	Between Series	Brass	4 GHz	Straight	BNC to N	Male to Male	Nickel	Male Pin N Plug	-65 ░C	165 °C	Free Hanging (In-Line)	500	Brass	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R191413000	Plug to Jack	BNC Jack Female Socket	Bayonet Lock Snap-On	Between Series	Beryllium Copper Brass	4 GHz	Straight	BNC to MQ		Chromium	Male Pin MQ Plug	-40 °C	100 °C	Free Hanging (In-Line)	500	Brass	Silver	50 Ohms	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R191419000	Plug to Jack	Female Socket N Jack	Bayonet Lock Threaded	Between Series	Beryllium Copper	4 GHz	Straight	BNC to N		Nickel	BNC Plug Male Pin	-65 ░C	165 °C	Free Hanging (In-Line)		Brass	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 159.94

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To MQ Plug, Male Pin 50 Ohms
