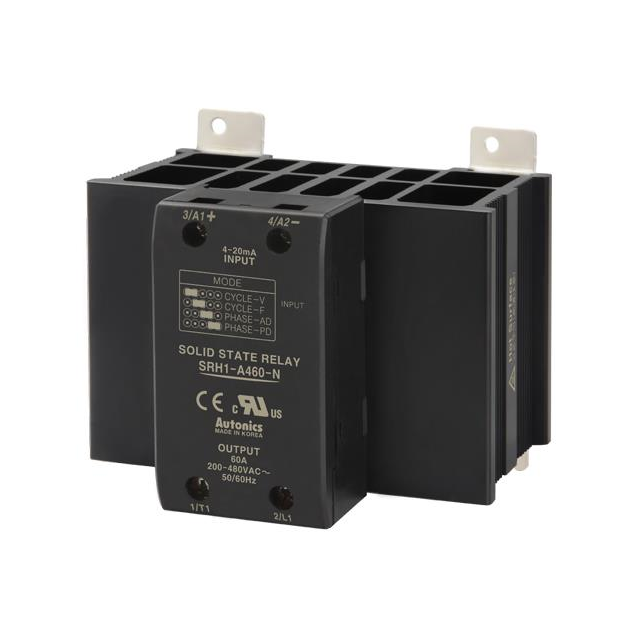

SRH1-A460-N

Active

AUTONICS

SSR RELAY SPST-NO 60A 200-480V

Search across all available documentation for this part.

Active

AUTONICS

SSR RELAY SPST-NO 60A 200-480V

Technical Specifications

Parameters and characteristics for this part

Specification	SRH1-A460-N

Load Current	60 A
Mounting Type	Chassis Mount, DIN Rail
Output Type	AC
Package / Case	SSR with Integrated Heat Sink
Supplier Device Package	Module
Termination Style	Screw Terminal
Voltage - Load [Max]	480 V
Voltage - Load [Min]	200 V

Part	Supplier Device Package	Termination Style	Output Type	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Mounting Type	Load Current
AUTONICS SRH1-A460-N	Module	Screw Terminal	AC	480 V	200 V	SSR with Integrated Heat Sink	Chassis Mount DIN Rail	60 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 131.00

General part information

Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
