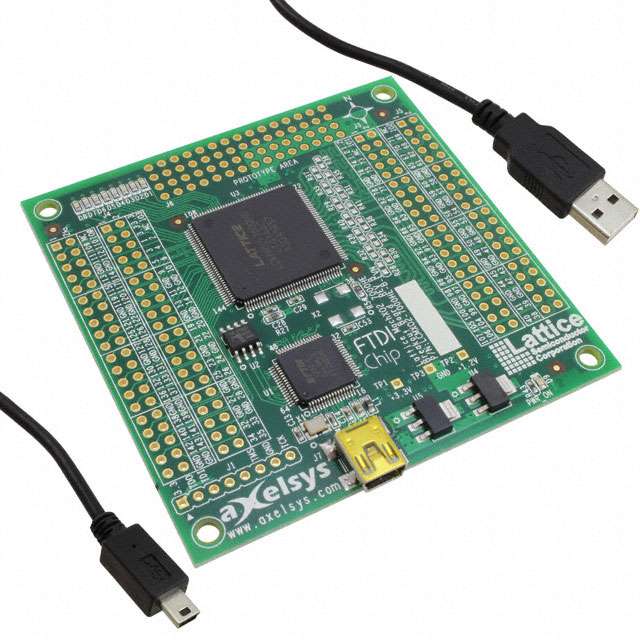

LCMXO2-7000HE-B-EVN
ActiveLATTICE SEMICONDUCTOR
BOARD BREAKOUT MACHX02
Deep-Dive with AI
Search across all available documentation for this part.
LCMXO2-7000HE-B-EVN
ActiveLATTICE SEMICONDUCTOR
BOARD BREAKOUT MACHX02
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCMXO2-7000HE-B-EVN |
|---|---|
| Contents | Board(s) |
| For Use With/Related Products | LCMXO2-7000 |
| Platform | MachXO2 FPGA Starter |
| Utilized IC / Part | LCMXO2-7000 |
LCMXO2-7000 Series
| Part | Number of I/O | Voltage - Supply [Min] | Voltage - Supply [Max] | Total RAM Bits | Package / Case | Number of Logic Elements/Cells | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Supplier Device Package | Utilized IC / Part | For Use With/Related Products | Platform | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LATTICE SEMICONDUCTOR | 206 I/O | 2.375 V | 3.465 V | 245760 bits | 256-LFBGA | 6864 | 0 °C | 85 °C | Surface Mount | 256-CABGA (14x14) | ||||
LATTICE SEMICONDUCTOR | 114 | 2.375 V | 3.465 V | 245760 bits | 144-LQFP | 6864 | 0 °C | 85 °C | Surface Mount | 144-TQFP (20x20) | ||||
LATTICE SEMICONDUCTOR | 114 | 245760 bits | 144-LQFP | 6864 | -40 C | 100 °C | Surface Mount | 144-TQFP (20x20) | ||||||
LATTICE SEMICONDUCTOR | LCMXO2-7000 | LCMXO2-7000 | MachXO2 FPGA Starter | Board(s) | ||||||||||
LATTICE SEMICONDUCTOR | 206 I/O | 245760 bits | 256-LBGA | 6864 | 0 °C | 85 °C | Surface Mount | 256-FTBGA (17x17) | ||||||
LATTICE SEMICONDUCTOR | 334 | 245760 bits | 484-BBGA | 6864 | 0 °C | 85 °C | Surface Mount | 484-FBGA (23x23) | ||||||
LATTICE SEMICONDUCTOR | 334 | 2.375 V | 3.465 V | 245760 bits | 484-BBGA | 6864 | -40 C | 100 °C | Surface Mount | 484-FBGA (23x23) | ||||
LATTICE SEMICONDUCTOR | 278 | 245760 bits | 332-FBGA | 6864 | 0 °C | 85 °C | Surface Mount | 332-CABGA (17x17) | ||||||
LATTICE SEMICONDUCTOR | 114 | 2.375 V | 3.465 V | 245760 bits | 144-LQFP | 6864 | 0 °C | 85 °C | Surface Mount | 144-TQFP (20x20) | ||||
LATTICE SEMICONDUCTOR | 114 | 245760 bits | 144-LQFP | 6864 | 0 °C | 85 °C | Surface Mount | 144-TQFP (20x20) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 139.00 | |
Description
General part information
LCMXO2-7000 Series
MachXO2 FPGA Starter LCMXO2-7000 MachXO2 FPGA Evaluation Board
Documents
Technical documentation and resources
