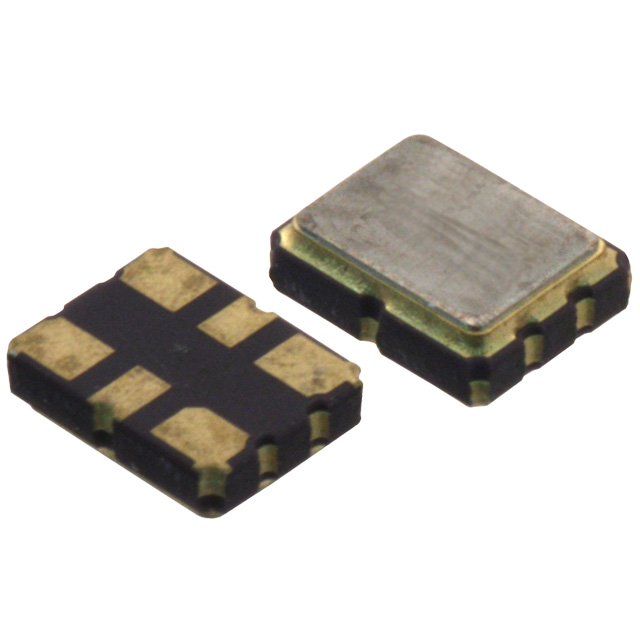

XLH335004.000000X

Active

Renesas Electronics Corporation

XTAL OSC XO 4.0000MHZ HCMOS SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet High-Performance Clock Oscillator Family Overview

XLH335004.000000X

Active

Renesas Electronics Corporation

XTAL OSC XO 4.0000MHZ HCMOS SMD

Deep-Dive with AI

DocumentsDatasheet High-Performance Clock Oscillator Family Overview

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XLH335004.000000X

Base Resonator	Crystal
Current - Supply (Max) [Max]	32 mA
Frequency	4 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output	HCMOS
Package / Case	6-SMD, No Lead
Size / Dimension [x]	0.13 in
Size / Dimension [x]	3.3 mm
Size / Dimension [y]	2.6 mm
Size / Dimension [y]	0.102 "
Type	XO (Standard)
Voltage - Supply	3.3 V

XLH335 Series

Part	Package / Case	Frequency Stability	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Base Resonator	Voltage - Supply	Output	Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Function	Mounting Type	Current - Supply (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]
Renesas Electronics Corporation XLH335064.000000I	6-SMD No Lead	50 ppm	0.039 "	1 mm	85 °C	-40 °C	Crystal	3.3 V	HCMOS	64 MHz	2.6 mm	0.13 in	0.102 "	3.3 mm	XO (Standard)	Enable/Disable	Surface Mount	47 mA
Renesas Electronics Corporation XLH335024.000000X	6-SMD No Lead	50 ppm	0.039 "	1 mm	70 °C	-20 C	Crystal	3.3 V	HCMOS	24 MHz	2.6 mm	0.13 in	0.102 "	3.3 mm	XO (Standard)	Enable/Disable	Surface Mount	35 mA
Renesas Electronics Corporation XLH335060.000000I	6-SMD No Lead	50 ppm	0.039 "	1 mm	85 °C	-40 °C	Crystal	3.3 V	HCMOS	60 MHz		0.126 in	0.098 in		XO (Standard)	Enable/Disable	Surface Mount	47 mA	3.2 mm	2.5 mm
Renesas Electronics Corporation XLH335001.000000I	6-SMD No Lead	50 ppm	0.039 "	1 mm	85 °C	-40 °C	Crystal	3.3 V	HCMOS	1 MHz	2.6 mm	0.13 in	0.102 "	3.3 mm	XO (Standard)	Enable/Disable	Surface Mount	32 mA
Renesas Electronics Corporation XLH335048.000000I	6-SMD No Lead	50 ppm	0.039 "	1 mm	85 °C	-40 °C	Crystal	3.3 V	HCMOS	48 MHz	2.6 mm	0.13 in	0.102 "	3.3 mm	XO (Standard)	Enable/Disable	Surface Mount	35 mA
Renesas Electronics Corporation XLH335006.560000X	6-SMD No Lead	50 ppm	0.039 "	1 mm	70 °C	-20 C	Crystal	3.3 V	HCMOS	6.56 MHz		0.126 in	0.098 in		XO (Standard)	Enable/Disable	Surface Mount	32 mA	3.2 mm	2.5 mm
Renesas Electronics Corporation XLH335002.000000I	6-SMD No Lead	50 ppm	0.039 "	1 mm	85 °C	-40 °C	Crystal	3.3 V	HCMOS	2 MHz	2.6 mm	0.13 in	0.102 "	3.3 mm	XO (Standard)	Enable/Disable	Surface Mount	32 mA
Renesas Electronics Corporation XLH335026.000000I	6-SMD No Lead	50 ppm	0.039 "	1 mm	85 °C	-40 °C	Crystal	3.3 V	HCMOS	26 MHz	2.6 mm	0.13 in	0.102 "	3.3 mm	XO (Standard)	Enable/Disable	Surface Mount	35 mA
Renesas Electronics Corporation XLH335004.000000X	6-SMD No Lead	50 ppm	0.039 "	1 mm	70 °C	-20 C	Crystal	3.3 V	HCMOS	4 MHz	2.6 mm	0.13 in	0.102 "	3.3 mm	XO (Standard)	Enable/Disable	Surface Mount	32 mA
Renesas Electronics Corporation XLH335089.000000I	6-SMD No Lead	50 ppm	0.039 "	1 mm	85 °C	-40 °C	Crystal	3.3 V	HCMOS	89 MHz		0.126 in	0.098 in		XO (Standard)	Enable/Disable	Surface Mount	47 mA	3.2 mm	2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	2000	$ 1.31

Description

General part information

XLH335 Series

4 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
