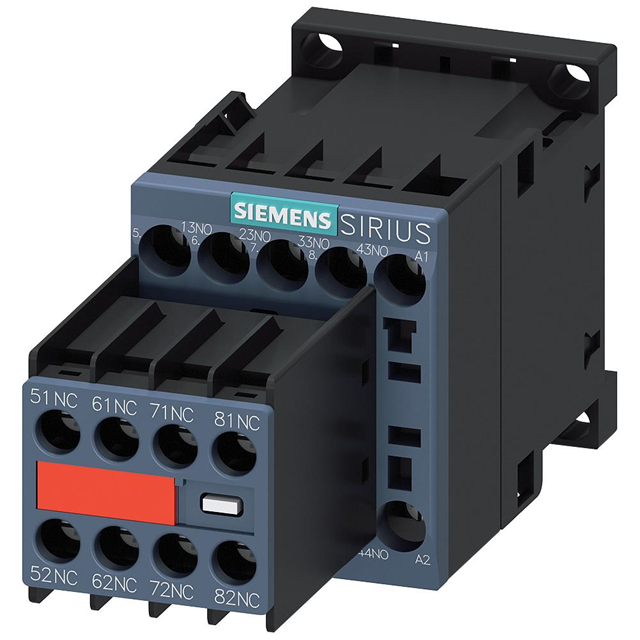

3RH22441AP60

Active

Siemens

CONTACTOR RELAY 4NO+4NC AC 230V

Search across all available documentation for this part.

Active

Siemens

CONTACTOR RELAY 4NO+4NC AC 230V

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Switching Voltage	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Termination Style	Must Operate Voltage	Coil Power	Contact Form	Operate Time	Features	Contact Rating (Current)
Siemens 3RH22441AP60	15 ms	690 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	240 VAC	Screw Terminal	204 VAC	37 VA	8PST-4NO/4NC (4 Form A 4 Form B)	33 ms	Auxiliary Contacts	10 A
Siemens 3RH22441BF40	13 ms	690 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	110 VDC	Screw Terminal	88 VDC	4 W	8PST-4NO/4NC (4 Form A 4 Form B)	100 ms	Auxiliary Contacts	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 152.73
