AZ2280-1C-24DEF

Active

American Zettler

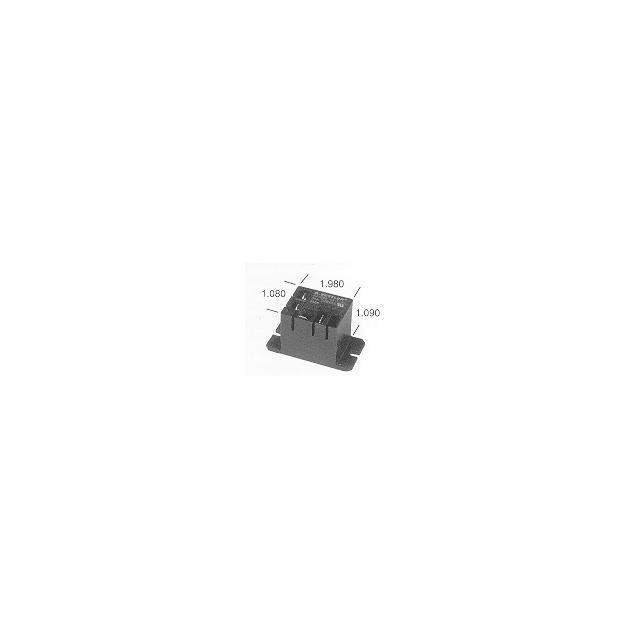

RELAY GEN PURPOSE SPDT 20A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2280-1C-24DEF

Active

American Zettler

RELAY GEN PURPOSE SPDT 20A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ2280-1C-24DEF

Approval Agency	UL, VDE, cUR
Coil Current	36 mA
Coil Insulation	Class F
Coil Resistance	660 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	20 A
Load - Max Switching	11080 VA, 840 W
Mounting Type	Chassis Mount
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage	277 VAC, 28 VDC
Termination Style	Quick Connect - 0.187"/0.250"

AZ2280-1C Series

Part	Coil Voltage	Release Time	Mounting Type	Contact Rating (Current)	Must Operate Voltage	Contact Material	Coil Current	Coil Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Coil Resistance	Load - Max Switching	Operate Time	Seal Rating	Approval Agency	Must Release Voltage	Termination Style	Contact Form	Coil Type	Switching Voltage
American Zettler AZ2280-1CE-15DE	15 VDC	10 ms	Chassis Mount	20 A	11.25 VDC	Silver Tin Oxide (AgSnO)	59 mA	Class F	85 °C	-55 °C	General Purpose	256 Ohms	840 W 11080 VA	15 ms	Sealed - Fully	cUR UL VDE	1.5 VDC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC
American Zettler AZ2280-1C-24DEF	24 VDC	10 ms	Chassis Mount	20 A	18 VDC	Silver Cadmium Oxide (AgCdO)	36 mA	Class F	85 °C	-55 °C	General Purpose	660 Ohms	840 W 11080 VA	15 ms	Sealed - Fully	cUR UL VDE	2.4 VDC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC
American Zettler AZ2280-1C-24AEF	24 VAC	10 ms	Chassis Mount	20 A		Silver Cadmium Oxide (AgCdO)	240 mA	Class F	60 °C	-55 °C	General Purpose	100 Ohms	840 W 11080 VA	15 ms	Sealed - Fully	cUR UL VDE	4.8 VAC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC
American Zettler AZ2280-1CE-277AF	277 VAC	10 ms	Chassis Mount	20 A	235.4 VAC	Silver Tin Oxide (AgSnO)	18.5 mA	Class F	60 °C	-55 °C	General Purpose	15 kOhms	840 W 11080 VA	15 ms		cUR UL VDE	55.4 VAC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC
American Zettler AZ2280-1C-120AKF	120 VAC	10 ms	Chassis Mount	20 A	102 VAC	Silver Cadmium Oxide (AgCdO)	48 mA	Class F	60 °C	-55 °C	General Purpose	2500 Ohms	840 W 11080 VA	15 ms		cUR UL VDE	24 VAC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC
American Zettler AZ2280-1C-240AF	240 VAC	10 ms	Chassis Mount	20 A	187 VAC	Silver Cadmium Oxide (AgCdO)	17.8 mA	Class F	60 °C	-55 °C	General Purpose	13.49 kOhms	840 W 11080 VA	15 ms		cUR UL VDE	48 VAC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC
American Zettler AZ2280-1C-277AF	277 VAC	10 ms	Chassis Mount	20 A	235.4 VAC	Silver Cadmium Oxide (AgCdO)	18.5 mA	Class F	60 °C	-55 °C	General Purpose	15 kOhms	840 W 11080 VA	15 ms		cUR UL VDE	55.4 VAC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC
American Zettler AZ2280-1C-24A	24 VAC	10 ms	Chassis Mount	20 A		Silver Cadmium Oxide (AgCdO)	240 mA	Class F	60 °C	-55 °C	General Purpose	100 Ohms	840 W 11080 VA	15 ms		cUR UL VDE	4.8 VAC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC
American Zettler AZ2280-1CE-18DE	18 VDC	10 ms	Chassis Mount	20 A	13.5 VDC	Silver Tin Oxide (AgSnO)	47 mA	Class F	85 °C	-55 °C	General Purpose	380 Ohms	840 W 11080 VA	15 ms	Sealed - Fully	cUR UL VDE	1.8 VDC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC
American Zettler AZ2280-1C-277AE	277 VAC	10 ms	Chassis Mount	20 A	235.4 VAC	Silver Cadmium Oxide (AgCdO)	18.5 mA	Class F	60 °C	-55 °C	General Purpose	15 kOhms	840 W 11080 VA	15 ms	Sealed - Fully	cUR UL VDE	55.4 VAC	Quick Connect - 0.187"/0.250"	SPDT (1 Form C)	Non Latching	28 VDC 277 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.00
		10	$ 3.75
		25	$ 3.33
		40	$ 3.17
		80	$ 3.00
		240	$ 2.67
		440	$ 2.50
		960	$ 2.33

Description

General part information

AZ2280-1C Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Chassis Mount
