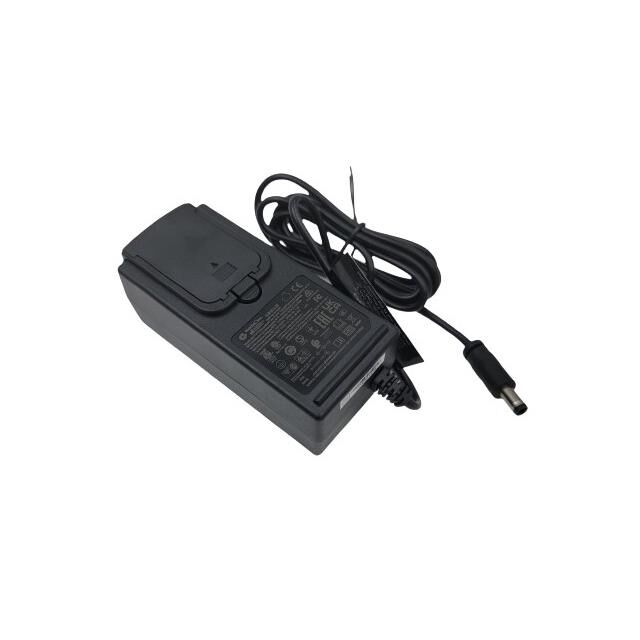

RR9LG2400LCPCIMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 15V 36W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RR9LG2400LCPCIMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 15V 36W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RR9LG2400LCPCIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, ETL, CCC, FCC, RCM, UKRSepro, LPS, S-Mark, cETLus, CE, CB, EAC, VCCI
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	2.4 A
Efficiency	Level VI
Form	Wall Mount (Class I), Desktop
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	4 in
Size / Dimension [x]	101.7 mm
Size / Dimension [y]	46.5 mm
Size / Dimension [y]	1.83 in
Size / Dimension [z]	38.2 mm
Size / Dimension [z]	1.5 "
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

RR9LG2400 Series

Part	Voltage - Output	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Input Type	Polarization	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Region Utilized	Applications	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [x]	Current - Output (Max) [Max]	Power (Watts)	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Form	Output Connector [z]	Input Connector
GlobTek, Inc. RR9LG2400LCPCIMR6B	15 VDC	75 mW	90 VAC	264 VAC	60.2 in	1.53 m	Cord Multi-Blade	Positive Center	38.2 mm	4 in	46.5 mm	1.83 in	101.7 mm	1.5 "	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	International	Household Appliances ITE (Commercial) Medical	Level VI	Barrel Plug	2.5 mm 5.5 mm	11 mm	2.4 A	36 W	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro VCCI	-20 C	40 °C	Desktop Wall Mount (Class I)
GlobTek, Inc. RR9LG2400CCPCIMR6B	15 VDC	75 mW	90 VAC	264 VAC	60.2 in	1.53 m	Cord Multi-Blade	Positive Center	38.2 mm	4 in	46.5 mm	1.83 in	101.7 mm	1.5 "	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	International	Household Appliances ITE (Commercial) Medical	Level VI	Barrel Plug	2.1 mm 5.5 mm		2.4 A	36 W	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro VCCI	-20 C	40 °C	Desktop Wall Mount (Class I)	11 mm
GlobTek, Inc. RR9LG2400T00NAIMR6B	15 VDC	75 mW	90 VAC	264 VAC	59 in	1.5 m	Cord (Sold Separately) Multi-Blade (Single Blade Included)		38.2 mm	4 in	46.5 mm	1.83 in	101.7 mm	1.5 "	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	International	Household Appliances ITE (Commercial) Medical	Level VI	1.3mm x 3.5mm Barrel Plug Kit			2.4 A	36 W	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro VCCI	-20 C	40 °C	Desktop Wall Mount (Class I)		IEC 320-C6 Multi-Blade (Single Blade Included)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.46
		5	$ 16.02
		10	$ 15.13
		48	$ 14.24
		96	$ 13.35
		144	$ 12.46
		288	$ 12.01
		528	$ 11.83

Description

General part information

RR9LG2400 Series

15V 36 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord, Multi-Blade (Sold Separately) Input
