3.14.100.006/0000

Active

RAFI USA

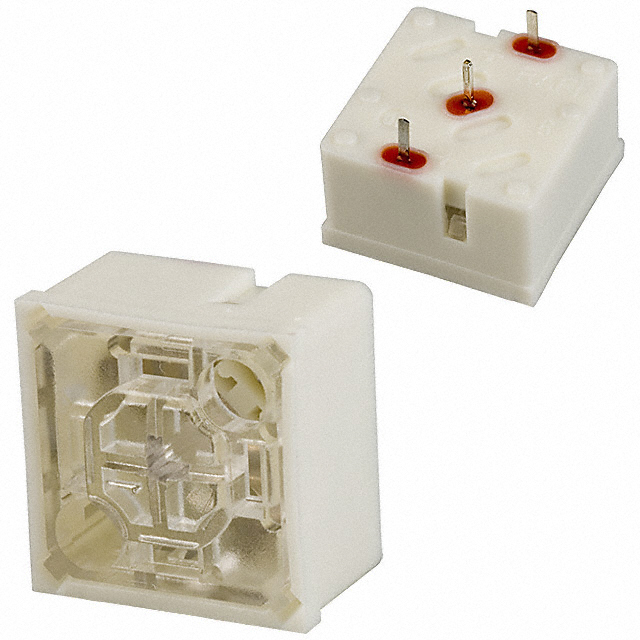

SWITCH TACTILE SPST-NO 0.25A 35V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3.14.100.006/0000

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.25A 35V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3.14.100.006/0000

Actuator Height off PCB, Vertical	9.7 mm
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage [custom]	35 VAC/DC
Contact Rating @ Voltage [custom]	0.25 A
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	296 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	15 mm
Outline [y]	15 mm
Switch Function	Off-Mom
Switch Travel	0.5 mm
Termination Style	PC Pin

3.14.100 Series

Part	Mechanical Life	Actuator Height off PCB, Vertical [z]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Contact Rating @ Voltage	Illumination	Termination Style	Operating Force	Mounting Type	Actuator Orientation	Switch Function	Circuit	Switch Travel	Actuator Height off PCB, Vertical	Illumination Type, Color	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]
RAFI USA 3.14.100.801/0000	1000000 Cycles	12.5 mm	Round Button	70 °C	-25 °C	15 mm	15 mm	0.1 A 35 VAC/DC	Non-Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm
RAFI USA 3.14.100.040/0000	1000000 Cycles		Square Button	70 °C	-25 °C	15 mm	15 mm	0.1 A 35 VAC/DC	Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm	9.7 mm	Blue LED
RAFI USA 3.14.100.041/0000	1000000 Cycles		Square Button	70 °C	-25 °C	15 mm	15 mm		Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm	9.7 mm	LED Red	35 VAC/DC	0.25 A
RAFI USA 3.14.100.030/0000	1000000 Cycles		Square Button	70 °C	-25 °C	15 mm	15 mm	0.1 A 35 VAC/DC	Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm	9.7 mm	Blue LED
RAFI USA 3.14.100.006/0000	1000000 Cycles		Square Button	70 °C	-25 °C	15 mm	15 mm		Non-Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm	9.7 mm		35 VAC/DC	0.25 A
RAFI USA 3.14.100.606/0000	1000000 Cycles		Plunger for Cap	70 °C	-25 °C	15 mm	15 mm		Non-Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm	6.2 mm		35 VAC/DC	0.25 A
RAFI USA 3.14.100.830/0000	1000000 Cycles	12.5 mm	Round Button	70 °C	-25 °C	15 mm	15 mm	0.1 A 35 VAC/DC	Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm		Green LED
RAFI USA 3.14.100.532/0000	1000000 Cycles		Round Button	70 °C	-25 °C	15 mm	15 mm	0.1 A 35 VAC/DC	Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm	9.7 mm	Green LED
RAFI USA 3.14.100.702/0000	1000000 Cycles	12.5 mm	Square Button	70 °C	-25 °C	15 mm	15 mm	0.1 A 35 VAC/DC	Non-Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm
RAFI USA 3.14.100.506/0000	1000000 Cycles		Round Button	70 °C	-25 °C	15 mm	15 mm		Non-Illuminated	PC Pin	296 gf	Through Hole	Top Actuated	Off-Mom	SPST-NO	0.5 mm	9.7 mm		35 VAC/DC	0.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.64
		10	$ 2.95
		25	$ 2.71
		100	$ 2.39
		250	$ 2.19
		500	$ 2.05
		1000	$ 1.91
		2500	$ 1.75
		5000	$ 1.63

Description

General part information

3.14.100 Series

Tactile Switch SPST-NO Top Actuated Through Hole
