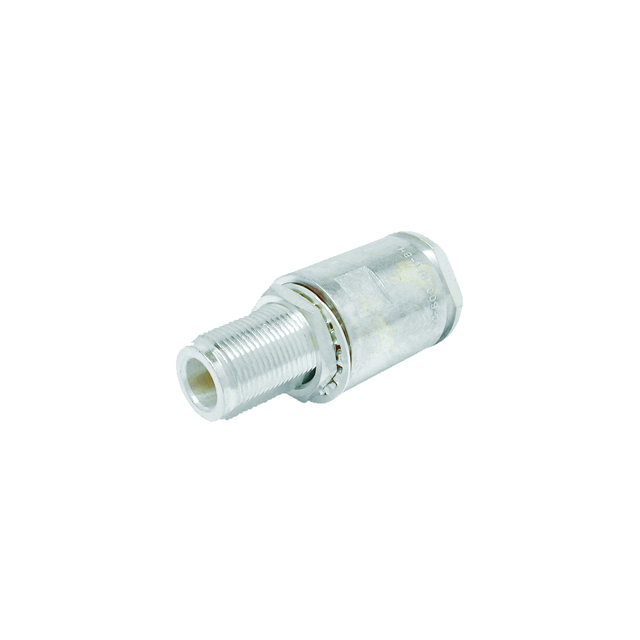

TC-600-NFC-BH

Obsolete

Amphenol Times Microwave Systems

N-FEMALE (JACK) CLAMP BULKHEAD C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TC-600-NFC-BH

Obsolete

Amphenol Times Microwave Systems

N-FEMALE (JACK) CLAMP BULKHEAD C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TC-600-NFC-BH

Body Finish	Silver
Body Material	Brass
Cable Group	LMR-600
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Clamp
Voltage Rating	1000 VDC

TC-600 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mating Cycles	Mounting Type	Shield Termination	Center Contact Plating	Body Material	Impedance	Number of Ports	Housing Color	Body Finish	Contact Termination	Frequency - Max [Max]	Connector Type	Center Contact Material	Cable Group	Connector Style	Dielectric Material	Mounting Feature	Ingress Protection	Insertion Loss
Amphenol Times Microwave Systems TC-600-TF-X	-55 °C	125 °C	750 VDC	500	Free Hanging (In-Line)	Crimp	Gold	Brass	50 Ohms	1	Silver	White Bronze	Solder	6000 MHz	Female Socket Jack	Phosphor Bronze	LMR-600	TNC	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-600-UM-X
Amphenol Times Microwave Systems TC-600-TM-RA-D	-55 °C	125 °C	500 V	500	Free Hanging (In-Line) Right Angle	Crimp	Gold	Brass	50 Ohms	1	Silver	White Bronze	Solder	6000 MHz	Male Pin Plug	Brass	LMR-600	TNC	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-600-NFC-BH	-40 °C	85 °C	1000 VDC			Clamp	Gold	Brass	50 Ohms	1	Silver	Silver	Solder	2.5 GHz	Female Socket Jack	Brass	LMR-600	N Type	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems TC-600-716M-X	-40 °C	85 °C			Free Hanging (In-Line)	Crimp	Silver	Brass	50 Ohms	1	Silver	White Bronze	Solder	6000 MHz	Male Pin Plug	Beryllium Copper Brass	LMR-600	7/16 DIN	Polytetrafluoroethylene (PTFE)		IP67 - Dust Tight Waterproof	0.05 dB
Amphenol Times Microwave Systems TC-600-716MC	-40 °C	85 °C	2700 V		Free Hanging (In-Line)	Clamp	Silver	Brass	50 Ohms	1	Silver	Silver	Solder	2.5 GHz	Male Pin Plug	Beryllium Copper	LMR-600	7/16 DIN	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-600-HNMC	-65 ░C	165 °C	1500 V		Free Hanging (In-Line)	Clamp	Silver	Brass	50 Ohms	1	Silver	Nickel	Solder	4 GHz	Male Pin Plug	Brass	LMR-600	HN Type	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-600-TF-RP	-40 °C	85 °C	500 V		Free Hanging (In-Line)	Crimp	Gold	Brass	50 Ohms	1	Silver	Nickel	Solder	3 GHz	Jack Male Pin	Brass	LMR-600	RP-TNC	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-600-NF-BH	-40 °C	85 °C	1000 VDC			Crimp	Gold	Brass	50 Ohms	1	Silver	Silver	Solder	2.5 GHz	Female Socket Jack	Brass	LMR-600	N Type	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems TC-600-TM-RP	-40 °C	85 °C	500 V		Free Hanging (In-Line)	Crimp	Gold	Brass	50 Ohms	1	Silver	Nickel	Solder	3 GHz	Female Socket Plug	Phosphor Bronze	LMR-600	RP-TNC	Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TC-600 Series

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
