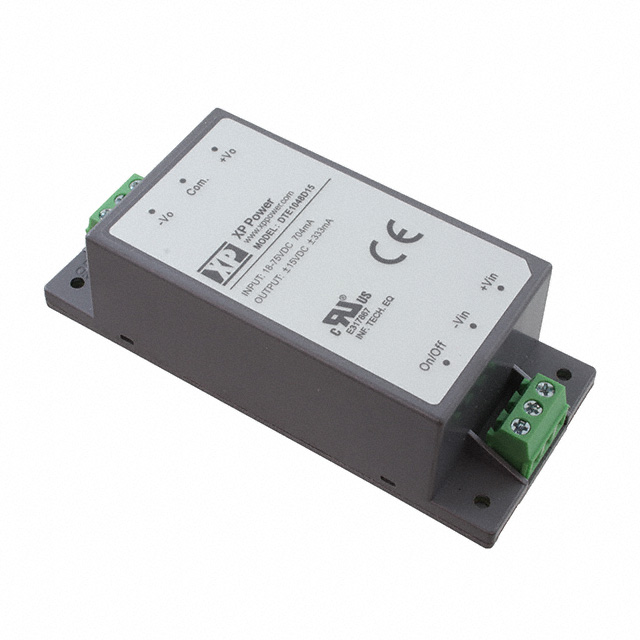

DTE1048D15

Active

XP POWER

DC/DC CONVERTER +/-15V 10W

Search across all available documentation for this part.

Active

XP POWER

DC/DC CONVERTER +/-15V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Type	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Applications	Voltage - Output 1	Current - Output (Max) [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
XP POWER DTE1048S48	Chassis Mount	84 %	10 W	18 V	1	75 V	Enclosed	62368-1	-40 °C	105 C	3000 V	ITE (Commercial)	48 V	208 mA	CB CE	34 mm	79 mm	22 mm	0.87 in	1.34 in	3.11 in
XP POWER DTE1048D15	Chassis Mount	86 %	10 W	18 V	2	75 V	Enclosed	62368-1	-40 °C	105 C	3000 V	ITE (Commercial)	15 V		CB CE	34 mm	79 mm	22 mm	0.87 in	1.34 in	3.11 in	-15 V	333 mA	333 mA
XP POWER DTE1048S5V1	Chassis Mount	84 %	10 W	18 V	1	75 V	Enclosed	62368-1	-40 °C	105 C	3000 V	ITE (Commercial)	5.1 V	2 A	CB CE	34 mm	79 mm	22 mm	0.87 in	1.34 in	3.11 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 2 Output 15V -15V 333mA, 333mA 75V Input
